5340-01-631-5855
Crank Handle
5340016315855 016315855 22054
A metallic or nonmetallic item specifically designed to be attached to a ARM, HAND CRANK parallel to its axis for transmitting motion to a shaft or object. View more Crank Handle
January 2023
2
Marketplace 5340-01-631-5855
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-631-5855 5+ Documents (More...)
Crank Handle 5340016315855 016315855,22054 (Identification) 1/2 NSN 5340-01-631-5855 (Identification
Crank Handle 5340016315855 016315855,22054 (Identification) 1/2 NSN 5340-01-631-5855 (Identification
22054 Knob 5355270228312 270228312,22054 instructions how to enable JavaScript in your web browser .
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-631-5855 Crank Handle 5340016315855 016315855,22054
Crank Handle 5340016315855 016315855,22054 RQST NE Updated Every Day 5340-01-631-5855 RQST Updated
Every Day 5340-01-631-5855 RQST NE Related Documents 5340-01-631-5855 5+ Documents ( More... ) https
www.nsnlookup.com /fsg-58/fsc-5845/no 5845-25-133-9642 Svinger M/Brakett 5845251339642251339642 M15-22054
enable JavaScript in your web browser . 5845-25-133-9642Svinger M/Brakett5845251339642 251339642 M15-22054
22054 https//www.nsnlookup.com /fsg-65/fsc-6515/de 6515-12-381-5427 Hypodermic Syringe 6515123815427
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-631-5855 Crank Handle 5340016315855 016315855,22054
Restrictions 5340-01-631-5855
5340-01-631-5855 is a Crank Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-631-5855
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-631-5855
- France (ZF01)
- Effective Date:
- 1 Sep 2014
Approved Sources 5340-01-631-5855
- Part Number
- Manufacturer
- Status
- 22054
- Manufacturer
- 94882 - Jergens Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-631-5855
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Drive Facility Outside Diameter [AWKN]
- 22.0 Millimeters Nominal
- Drive Width [AWGN]
- 16.0 Millimeters Nominal
- Drive Facility Style [AWJY]
- Hexagon
- Drive Facility Thread Series Designator [AWJZ]
- Iso M
- Handle Counterbalancing Weight [AWKE]
- Not Included
- Handle Length [AASN]
- 117.0 Millimeters Nominal
- Handle Mounting Method [AWKC]
- Thread
- Handle Rotating Feature [AWKD]
- Included

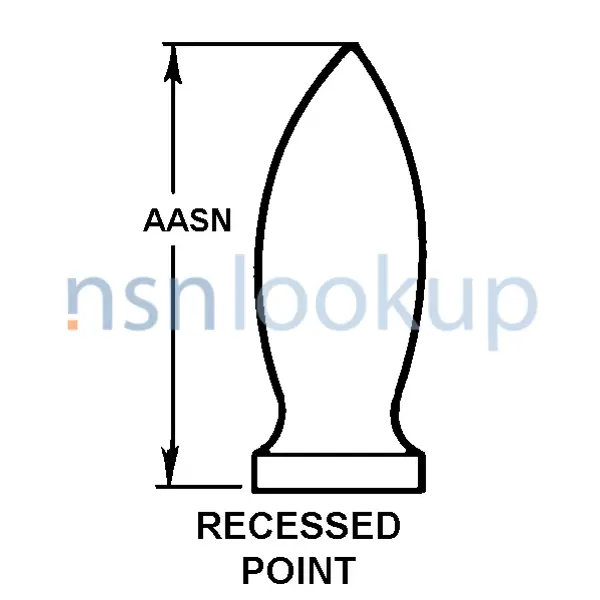

- Handle Style [ALMP]
- Recessed Point
- Part Name Assigned By Controlling Agency [CXCY]
- Ergonomic Style Handle, Steel, Metric Revolving Style M16
- Material And Location [ANNQ]
- Steel Overall
- Ratchet [AWKF]
- Not Included
- Overall Length [ABHP]
- 143.0 Millimeters Nominal
- Thread Location [APJC]
- Internal
- Thread Diameter [AWDP]
- 16.0 Millimeters Nominal
Similar Supply Items to 5340-01-631-5855
Freight Information 5340-01-631-5855
5340-01-631-5855 has freight characteristics.. 5340-01-631-5855 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
