5340-01-630-9821
Clamping Catch
5340016309821 016309821 0422-2422
A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified). View more Clamping Catch
June 2023
1
Marketplace 5340-01-630-9821
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-630-9821 2+ Documents (More...)
/fsg-53/fsc-5340/us
BUY NE FedMall Updated Every Day 5340-01-630-9821 RQST NE Updated Every Day 5340-01-630-9821 RQST
Updated Every Day 5340-01-630-9821 RQST NE Related Documents 5340-01-630-9821 2+ Documents ( More...
Clamping Catch 5340016309821 016309821 Stainless Steel Mfr Ref Single Material Response StrikeSpecial
Restrictions 5340-01-630-9821
5340-01-630-9821 is a Clamping Catch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-630-9821
- US Coast Guard (C056)
- Effective Date:
- 1 Aug 2014
Approved Sources 5340-01-630-9821
- Part Number
- Manufacturer
- Status
- 0422-2422
- Manufacturer
- 64747 - Advantec Manufacturing Usa, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-630-9821
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100

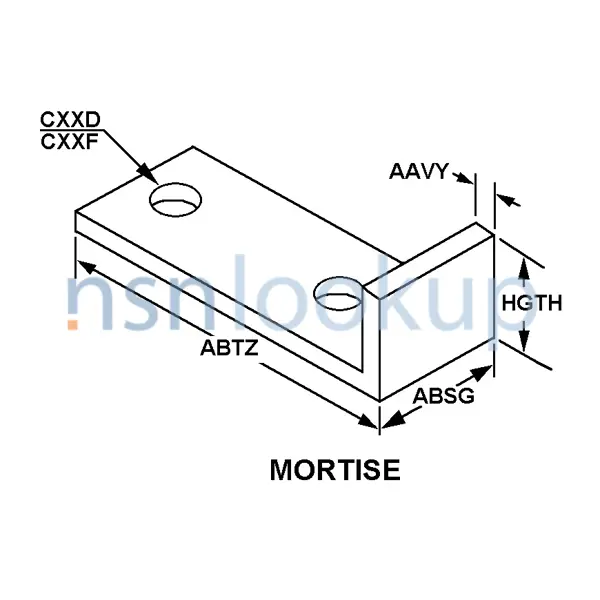

- Catch Strike Style [CXWY]
- Mortise
- Color [HUES]
- Silver
- Design Type [APGF]
- Claw Engaging
- Features Provided [CBBL]
- Cuplike Cushion
- End Item Identification [AGAV]
- Door,Pilot House; Response Boat-Medium (Rb-M)
- Material [MATT]
- Steel Comp 316 Catch
- Material [MATT]
- Steel Comp 316 Strike
- Mounting Method [AXGY]
- Bracket And Countersunk Hole
- Operation Method [APHE]
- Latch
- Part Name Assigned By Controlling Agency [CXCY]
- Door Stop And Catch
- Material Document And Classification [MDCL]
- Cast 316 Stainless Steel Mfr Ref Single Material Response Catch
- Material Document And Classification [MDCL]
- Cast 316 Stainless Steel Mfr Ref Single Material Response Strike
- Special Features [FEAT]
- Next Higher Assembly 5340-01-600-2328 Door,Access, General Purpose
- Style Designator [STYL]
- Lever With Spring
Weapon Systems (WSDC) 5340-01-630-9821
DLA Procurement Analysis 5340-01-630-9821
Management Data 5340-01-630-9821
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-630-9821
Freight Information 5340-01-630-9821
5340-01-630-9821 has freight characteristics.. 5340-01-630-9821 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Contracting Technical Data File (CTDF) 5340-01-630-9821 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
