5340-01-623-6413
Angle Bracket
5340016236413 016236413 40289-45420-1 40289-45420
A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF. View more Angle Bracket
May 2023
1
Marketplace 5340-01-623-6413
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-623-6413 2+ Documents (More...)
(Identification) 1/4 NSN 5340-01-623-6413 (Identification) 2/4 NSN 5340-01-623-6413 (Identification
5340-01-623-6413 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-623-6413
/fsg-51/fsc-5120/it
Angle Bracket 5340016236413 016236413 (Identification) 1/4 NSN 5340-01-623-6413 (Identification
) 2/4 NSN 5340-01-623-6413 (Identification) (Identification) 2/4 NSN 5340-01-623-6413 (Identification
Restrictions 5340-01-623-6413
5340-01-623-6413 is a Angle Bracket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-623-6413
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-623-6413
- US Army (A703)
- Effective Date:
- 1 Nov 2013
Approved Sources 5340-01-623-6413
- Part Number
- Manufacturer
- Status
- 40289-45420-1
- Manufacturer
- 97384 - Textron Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 40289-45420
- 97384 - Textron Systems Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5340-01-623-6413
- Characteristic
- Specifications
- FIIG
- Specifications
- A042A0
- Material [MATT]
- Aluminum Alloy 6061
- Surface Treatment [SFTT]
- Paint
- Style Designator [STYL]
- Angle
- First Leg Length [ADLK]
- 2.000 Inches Nominal
- Second Leg Length [ADLL]
- 3.000 Inches Nominal
- First Leg Thickness [AHPW]
- 0.250 Inches Nominal
- Second Leg Thickness [AHPX]
- 0.250 Inches Nominal
- First Leg Angle [CSSQ]
- 90.0 Degrees Nominal
- First Leg Style [AJZU]
- Square
- First Leg Width [AHQN]
- 7.250 Inches Nominal
- Second Leg Width [AHLF]
- 7.250 Inches Nominal
- First Leg Hole Arrangement Style [AKAU]
- No Hole
- Second Leg Distance Between First And Second Hole Centers Along Width [AHLT]
- 2.000 Inches Nominal
- Second Leg Distance Between Second And Third Hole Centers Along Width [AHLU]
- 2.000 Inches Nominal
- Second Leg Distance From Edge To Hole Center Along Width [AHLV]
- 0.625 Inches Nominal
- Second Leg Distance Between Third And Fourth Hole Centers Along Width [AHMB]
- 2.000 Inches Nominal
- Second Leg Distance From Edge To Hole Center Along Length [AHLW]
- 1.130 Inches Nominal
- Second Leg Slot Length [AHLZ]
- 1.000 Inches Nominal
- Second Leg Slot Width [AHMA]
- 0.344 Inches Nominal
- Second Leg Relationship To First Leg [CSSP]
- Not Identical
- Second Leg Style [AKBU]
- Square
- Second Leg Hole Arrangement Style [AKCU]

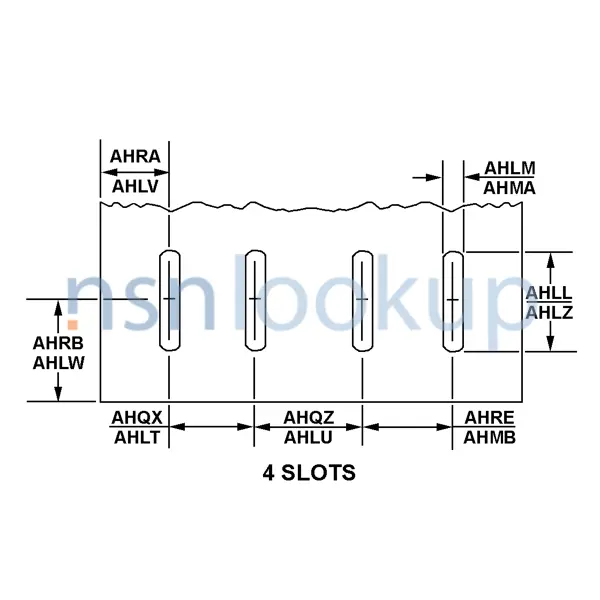

- 4 Slots
- Part Name Assigned By Controlling Agency [CXCY]
- Angle,Hinged Beam,Support Mounting
