5340-01-622-7035
Extension Drawer Slide
5340016227035 016227035 MC-009264ITEM43 MC-012035 10845A41
An item designed to be installed in a cabinet or rack to provide support and a sliding or rolling surface for a drawer, or the like. A portion of the slide extends with the drawer to provide support when the drawer is in the open position. View more Extension Drawer Slide
May 2023
1
Marketplace 5340-01-622-7035
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-622-7035 1+ Documents (More...)
United States (US) 4. 5340-01-622-7035 Marketplace Restrictions Approved Sources Datasheet Management
Updated Every Day 5340-01-622-7035 RQST NE Updated Every Day 5340-01-622-7035 RQST Updated Every Day
Restrictions 5340-01-622-7035
5340-01-622-7035 is a Extension Drawer Slide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-622-7035
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-622-7035
- US Navy (N9BZ)
- Effective Date:
- 1 Oct 2013
- Supplementary Collaborators:
- HX
Approved Sources 5340-01-622-7035
- Part Number
- Manufacturer
- Status
- MC-009264ITEM43
- Manufacturer
- 27192 - Drs Naval Power Systems Inc (Active)
- Primary Buy
- Primary Buy
- MC-012035
- 27192 - Drs Naval Power Systems Inc (Active)
- Primary Buy
- Primary Buy
- 10845A41
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-622-7035
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Material [MATT]
- Steel Comp 304 Overall

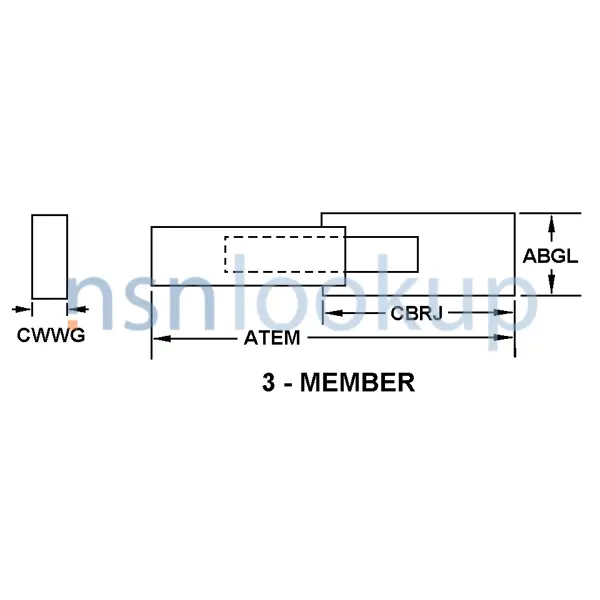

- Style Designator [STYL]
- 3 - Member
- Width [ABGL]
- 2.937 Inches Nominal
- Extended Length [ATEM]
- 24.999 Inches Nominal
- Closed Length [CBRJ]
- 11.812 Inches Minimum
- Height [CWWG]
- 1.062 Inches Nominal
- Mounting Method [AXGY]
- Base
- Mounting Facility Quantity [AKPV]
- 6
- Load Capacity [CXXJ]
- 100.0 Pounds Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Stainless Steel Base-Mount Drawer Slide
DLA Procurement Analysis 5340-01-622-7035
Management Data 5340-01-622-7035
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-622-7035
Freight Information 5340-01-622-7035
5340-01-622-7035 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096775. A Sub NMFC of X. It has a NMFC Description of SLIDES DRAWER/SHELF/TABLE STEEL. 5340-01-622-7035 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 44620 which rates the freight between FCL and LCL. 5340-01-622-7035 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-622-7035 is not classified as a special type of cargo when transported by water. 5340-01-622-7035 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-622-7035 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
