5340-01-607-6758
Bow Handle
5340016076758 016076758 12514716
An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR. View more Bow Handle
May 2023
1
Marketplace 5340-01-607-6758
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-607-6758 1+ Documents (More...)
RQST NE Updated Every Day 5340-01-607-6758 RQST Updated Every Day 5340-01-607-6758 RQST NE Related Documents
5340-01-607-6758 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-607-6758
Restrictions 5340-01-607-6758
5340-01-607-6758 is a Bow Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-607-6758
- US Army (A403)
- Effective Date:
- 1 Jun 2013
- Former MOE Rule:
- A204
- Supplementary Receivers:
- AZ
Approved Sources 5340-01-607-6758
- Part Number
- Manufacturer
- Status
- 12514716
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-607-6758
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Aluminum Alloy 6061 Bracket
- Surface Treatment [SFTT]
- Paint Bracket
- Color [HUES]
- Green Bracket

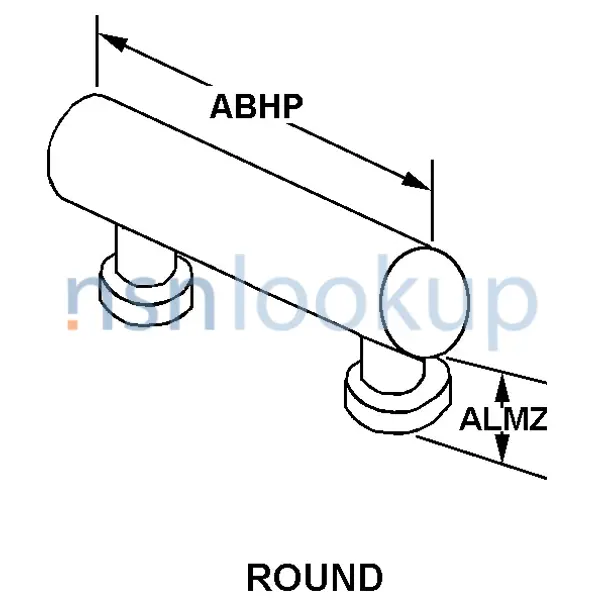

- Style Designator [STYL]
- Round
- Overall Length [ABHP]
- 494.0 Millimeters Nominal
- Handle Clearance [ALMZ]
- 69.0 Millimeters Nominal
- Mounting Method [AXGY]
- Bolt
- Mounting Facility Quantity [AKPV]
- 2
- End Item Identification [AGAV]
- Stryker Fov
- Part Name Assigned By Controlling Agency [CXCY]
- Handle
Management Data 5340-01-607-6758
Army
- Materiel Category and Inventory Manager:
- M
- Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- M8
- Armored Carriers
Light Armored Vehicle
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-607-6758
Freight Information 5340-01-607-6758
5340-01-607-6758 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-607-6758 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-607-6758 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-607-6758 is not classified as a special type of cargo when transported by water. 5340-01-607-6758 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
