5340-01-601-3658
Friction Catch
5340016013658 016013658 AR52-4
A nonpositive fastening device consisting of (1) a SPRING ACTUATED BALL, BOLT, PLUNGER, DOUBLE BEVEL LATCH, or the like, which is designed to be inserted and retained by compression of the spring, in a recess or STRIKE, CATCH. It may include the STRIKE, CATCH or (2) a two piece item consisting of a STUD, FRICTION CATCH and a RECEPTACLE, FRICTION CATCH STUD. The items are designed to position a door, cover, panel, or the like, in a fixed position and are released by normal pull. The items do not have provisions such as a knob, handle, or lever to actuate the bolt or plunger. Excludes CATCH MAGNETIC. View more Friction Catch
January 2023
3
Marketplace 5340-01-601-3658
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-601-3658 1+ Documents (More...)
5340-01-601-3658 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-601-3658
Friction Catch 5340016013658016013658,AR52-4 AR52-4 A nonpositive fastening device consisting of (1)
Restrictions 5340-01-601-3658
5340-01-601-3658 is a Friction Catch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-601-3658
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-601-3658
- US Air Force (FBB5)
- Effective Date:
- 1 Aug 2015
- Canada (ZC01)
- Effective Date:
- 1 Jan 2012
Approved Sources 5340-01-601-3658
- Part Number
- Manufacturer
- Status
- AR52-4
- Manufacturer
- 80477 - Adams Rite Aerospace, Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-601-3658
- Characteristic
- Specifications
- FIIG
- Specifications
- A10600
- Material [MATT]
- Steel Corrosion Resisting Overall
- Length [ABRY]
- 2.00 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Striker
- Special Features [FEAT]
- Thickness Of Catch Plate Is 0.050 Inches Depth Of Catch Is 0.620. The Two Mounting Holes 0.170 Inch Dimentions Dimpled 82 Degrees To 0.3000 Inch Diameter And Are Centered 0.901 Inches Apart
- Width [ABGL]
- 0.87 Inches Nominal

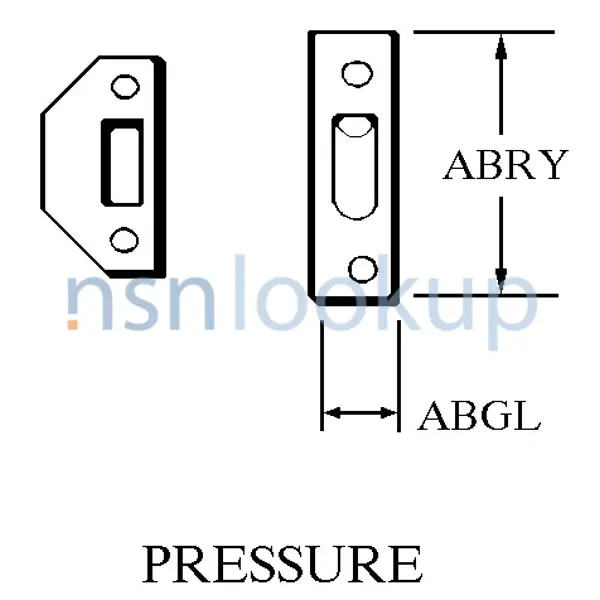

- Style Designator [STYL]
- Pressure
Management Data 5340-01-601-3658
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2018
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Budget:
- S
- 57X3010 - Aircraft Replenishment Spares
- Aggregation Code:
- BA
- C-17 PROGRAM
- Price Validation Code:
- E
- The current standard price is an estimated price.
Estimated Price challenges are allowed but follow procedures in para 60.b. (3) of section L of this manual.
This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5340-01-601-3658
Freight Information 5340-01-601-3658
5340-01-601-3658 has freight characteristics managed by the Department of the Air Force.. 5340-01-601-3658 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
