5340-01-600-8720
Beam Gripping Clamp
5340016008720 016008720 024122
A metallic clamp, designed for permanet installation, that grips the flange of a structural beam and facilitates the suspension of other objects. It is generally used in conjunction with a bracket or hanger to support cable, pipe, rods and the like. Excludes CLAMP, MATERIAL LIFTING. View more Beam Gripping Clamp
January 2023
1
Marketplace 5340-01-600-8720
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-600-8720 2+ Documents (More...)
5340-01-600-8720 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-600-8720
RQST NE Updated Every Day 5340-01-600-8720 RQST Updated Every Day 5340-01-600-8720 RQST NE Related
Subscribe to View Vendor Details... 24122 CIRCUIT https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-600-8720
Beam Gripping Clamp 5340016008720 016008720 $1 a day Upgrade your Account Upgrade 5340-01-600-8720Beam
Restrictions 5340-01-600-8720
5340-01-600-8720 is a Beam Gripping Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-600-8720
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-600-8720
- France (ZF01)
- Effective Date:
- 1 Dec 2011
Approved Sources 5340-01-600-8720
- Part Number
- Manufacturer
- Status
- 024122
- Manufacturer
- 0GT97 - Wampfler, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-600-8720
- Characteristic
- Specifications
- FIIG
- Specifications
- A09900
- Material [MATT]
- Steel

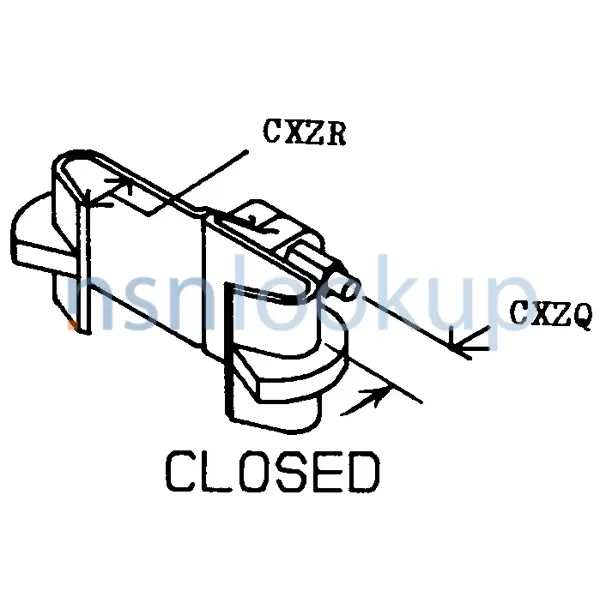

- Style Designator [STYL]
- Closed
- Material Thickness [ABPX]
- 9.0 Millimeters Nominal
- Length [ABRY]
- 50.0 Millimeters Nominal
- Base Width [ACUU]
- 110.0 Millimeters Nominal
- Distance Between Clamp Halves [CXZP]
- 18.0 Millimeters Nominal
- Jaw Inside Height [CXZR]
- 41.0 Millimeters Nominal
- Special Features [FEAT]
- M-10 Bolts Provided; Galvanized Steel Bracket
- End Item Identification [AGAV]
- C-Rail 240
- Part Name Assigned By Controlling Agency [CXCY]
- Track Support Bracket
Similar Supply Items to 5340-01-600-8720
Freight Information 5340-01-600-8720
5340-01-600-8720 has freight characteristics.. 5340-01-600-8720 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
