5340-01-597-3142
Crank Handle
5340015973142 015973142 7019402-02 MA-28325SS
A metallic or nonmetallic item specifically designed to be attached to a ARM, HAND CRANK parallel to its axis for transmitting motion to a shaft or object. View more Crank Handle
November 2023
2
Marketplace 5340-01-597-3142
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-597-3142 1+ Documents (More...)
(Identification) 1/2 NSN 5340-01-597-3142 (Identification) 2/2 - - 1.
United States (US) 4. 5340-01-597-3142 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5340-01-597-3142
5340-01-597-3142 is a Crank Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-597-3142
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-597-3142
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2011
Approved Sources 5340-01-597-3142
- Part Number
- Manufacturer
- Status
- 7019402-02
- Manufacturer
- 0MLM6 - Marine Corps Systems Command (Active)
- Primary Buy
- Primary Buy
- MA-28325SS
- 06197 - Monroe Engineering Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-597-3142
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Drive Facility Outside Diameter [AWKN]
- 0.375 Inches Nominal

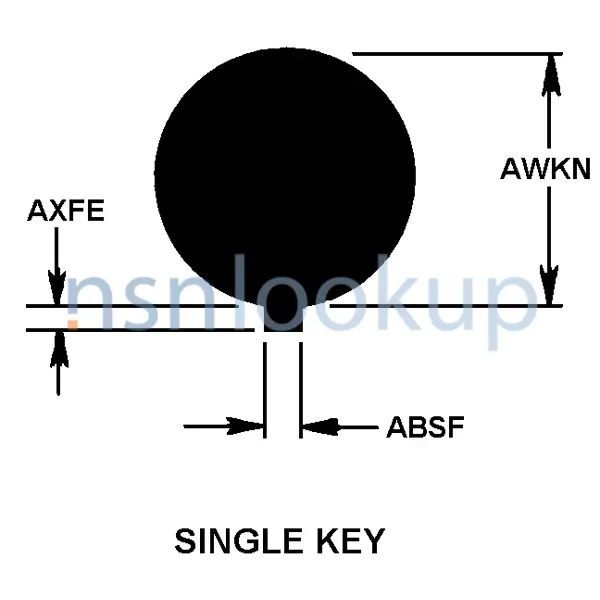

- Drive Facility Style [AWJY]
- Single Key
- End Item Identification [AGAV]
- Assault Amphibious Vehicle
- Handle Counterbalancing Weight [AWKE]
- Not Included
- Handle Length [AASN]
- 0.730 Inches Nominal
- Handle Rotating Feature [AWKD]
- Included
- Handle Style [ALMP]
- Ball
- Key Width [ABSF]
- 0.730 Inches Nominal
- Key Height [AXFE]
- 2.280 Inches Nominal
- Material And Location [ANNQ]
- Steel, Corrosion Resisting Drive End And Zinc Handle
- Ratchet [AWKF]
- Not Included
- Overall Depth [ABFY]
- 0.375 Inches Nominal
- Overall Length [ABHP]
- 1.770 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Adjustable Handle 3/8-16 Stud
Weapon Systems (WSDC) 5340-01-597-3142
DLA Procurement Analysis 5340-01-597-3142
- Last Stock Position:
- 108 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-597-3142
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jul 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5340-01-597-3142
Freight Information 5340-01-597-3142
5340-01-597-3142 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-597-3142 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-597-3142 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-597-3142 is not classified as a special type of cargo when transported by water. 5340-01-597-3142 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-597-3142
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
