Premium Information is available for this item - Upgrade for $1 a day
5340-01-590-2218

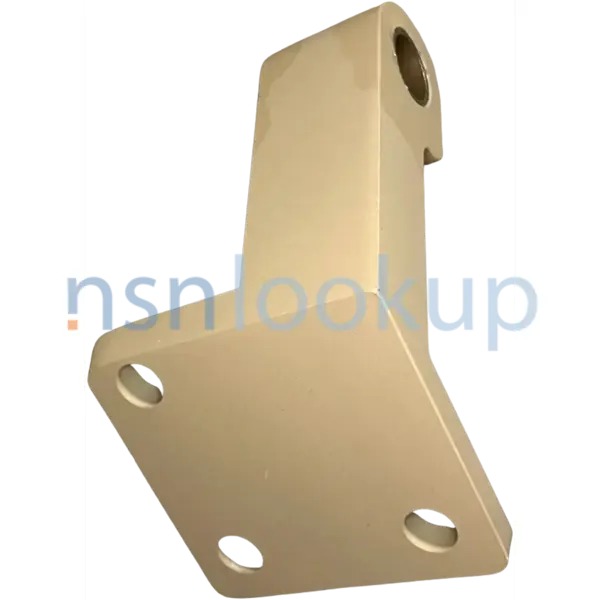

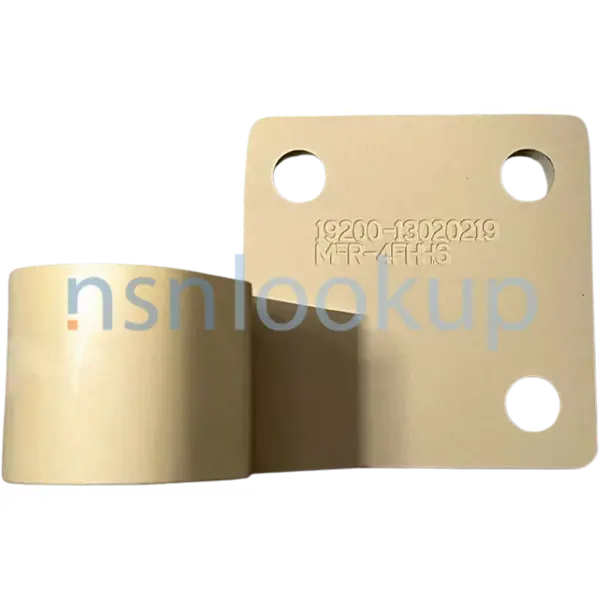

Mounting Bradley M2 M3 Bracket
5340015902218 015902218 13020217
A bracket of various shapes (other than angle), designed to be attached to a supporting surface for the specific purpose of positioning, aligning and/or supporting another item. Excludes BRACE (as modified); BRACKET, ANGLE; and BRACKET, DOUBLE ANGLE. See also BRACKET (1), ELECTRICAL CONNECTOR; BRACKET, FIRE EXTINGUISHER; BRACKET, SOLENOID; BRACKET, TRACK, SLIDING DOOR; and RETAINER (as modified). View more Mounting Bracket
March 2025
1
Marketplace 5340-01-590-2218
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-590-2218 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-590-2218 RQST NE Updated Every Day 5340-01-590-2218 RQST
Updated Every Day 5340-01-590-2218 RQST NE Related Documents 5340-01-590-2218 1+ Documents ( More...
Restrictions 5340-01-590-2218
5340-01-590-2218 is a Mounting Bradley M2 M3 Bracket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-590-2218
- US Army (A919)
- Effective Date:
- 1 Nov 2010
- Supplementary Receivers:
- BF
Approved Sources 5340-01-590-2218
- Part Number
- Manufacturer
- Status
- 13020217
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-590-2218
- Characteristic
- Specifications
- FIIG
- Specifications
- A042A0
- End Item Identification [AGAV]
- 2350-01-563-9444 Armored Reconnaissance-Airborne Assault
- Material [MATT]
- Aluminum Alloy 5083 Or Aluminum Alloy 5052 Or Aluminum Alloy 5086
- Material Document And Classification [MDCL]
- Astm B209 Assn Std Single Material Response Or Astm B928 Assn Std Single Material Response
- Overall Height [ABKW]
- 2.570 Inches Nominal
- Overall Length [ABHP]
- 3.500 Inches Nominal
- Overall Width [ABMK]
- 1.250 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Bracket, Actuator, Locking, Front
- Surface Treatment [SFTT]
- Paint
DLA Procurement Analysis 5340-01-590-2218
Management Data 5340-01-590-2218
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-590-2218
Freight Information 5340-01-590-2218
5340-01-590-2218 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 5340-01-590-2218 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5340-01-590-2218 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-590-2218 is not classified as a special type of cargo when transported by water. 5340-01-590-2218 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-590-2218 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
