5340-01-588-1819

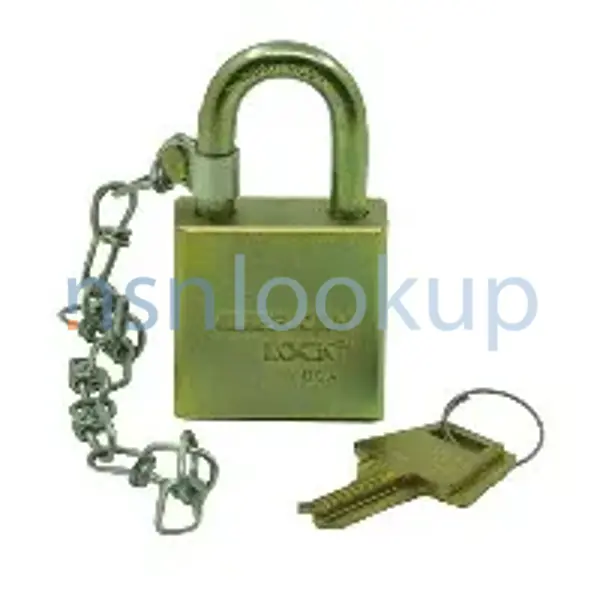

Padlock
5340015881819 015881819 A-A-59487 AA59487-1BCS
A detachable portable fastening device, having a shackle or bow adapted to be opened for engagement through a staple or the link of a chain. The bow or shackle, when locked, is secured in the case by means of a spring-activated pin(s) entering a notch(es) in the shackle. The lock may be opened by inserting and turning a key or keys, by key insertion only, or by a predetermined setting on the dial of a combination lock. For two or more padlocks which are keyed alike and/or master keyed, see PADLOCK SET. View more Padlock
November 2023
1
Marketplace 5340-01-588-1819
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-588-1819 5+ Documents (More...)
Updated Every 15 Minutes 5340-01-588-1819 BUY NE FedMall Updated Every Day 5340-01-588-1819 RQST NE
Updated Every Day 5340-01-588-1819 RQST Updated Every Day 5340-01-588-1819 RQST NE Related Documents
Restrictions 5340-01-642-6106 DEMIL: F | DEMILI https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-588-1819
Padlock 5340015881819 015881819,A-A-59487 Every 15 Minutes 5340-01-588-1819 BUY NE FedMall https
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-588-1819 Padlock 5340015881819 015881819,A-A-59487
Upgrade for $1 a day Upgrade your Account Upgrade 5340-01-588-1819Padlock5340015881819 015881819 A-A
Padlock 5340001583805001583805,A-A-59487 Upgrade for $1 a day Upgrade your Account Upgrade 5340 -00-
Padlock 5340015881819 015881819,A-A-59487 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-
A-A-59487-2SS Two or more PADLOCK which are keyed alike and/or master keyed.
A-A-59487-2SS Two or more PADLOCK which are keyed alike and/or master keyed.
Restrictions 5340-01-588-1819
5340-01-588-1819 is a Padlock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-588-1819
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-588-1819
- US Army (A919)
- Effective Date:
- 1 Sep 2010
- Supplementary Receivers:
- AJBFBDAZ
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2010
- Supplementary Receivers:
- TT
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2010
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2010
- Supplementary Collaborators:
- GTKE
Approved Sources 5340-01-588-1819
- Part Number
- Manufacturer
- Status
- AA59487-1BCS
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-59487
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5340-01-588-1819
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Chain Length [AGFA]
- 9.0000 Inches Nominal
- Construction [CQCF]
- Solid
- End Item Identification [AGAV]
- Ssbn Mk-118 Fire Control System
- Material [MATT]
- Copper Alloy Overall
- Operating Mechanism Type [BZHX]
- Pin Tumbler With Dead Bolt Locking Construction
- Key Change Quantity [CJLR]
- 5000
- Overall Height [CTHX]
- 2.790 Inches Nominal
- Overall Width [ABHC]
- 1.6500 Inches Minimum And 1.8500 Inches Maximum
- Special Features [FEAT]
- With 2 Keys Per Lock W/Key Retaining Features; Includes Chain Attached
- Surface Treatment Document And Classification [STDC]
- Stm B505 Assn Std Single Treatment Response Overall Or Astm B584 Assn Std Single Treatment Response Overall Or Stm B770 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Lacquer Overall
Weapon Systems (WSDC) 5340-01-588-1819
DLA Procurement Analysis 5340-01-588-1819
- Last Stock Position:
- 1065 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-588-1819
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5340-01-588-1819
Freight Information 5340-01-588-1819
5340-01-588-1819 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095760. A Sub NMFC of X. It has a NMFC Description of LOCKS/LOCK SETS NOI METAL IN BBL/BX. 5340-01-588-1819 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50130 which rates the freight between FCL and LCL. 5340-01-588-1819 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-588-1819 is not classified as a special type of cargo when transported by water. 5340-01-588-1819 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-588-1819
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-588-1819 2 Records
Contracting Technical Data File (CTDF) 5340-01-588-1819 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
