5340-01-581-3376
Hook Handle
5340015813376 015813376 03002A1278-1
An item, basically flat, with an integral hook type lip, tongue, or the like designed to be attached to another item such as a window, drawer, or door to provide a grip for opening, closing, lifting, and the like. Includes sash lifts of the integral hook type. Excludes HANDLE, DOOR. View more Hook Handle
May 2023
1
Marketplace 5340-01-581-3376
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-581-3376 1+ Documents (More...)
(Identification) 1/2 NSN 5340-01-581-3376 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5340-01-581-3376 RQST NE Updated Every Day 5340-01-581-3376 RQST
Restrictions 5340-01-581-3376
5340-01-581-3376 is a Hook Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-581-3376
- US Marine Corps (MC47)
- Effective Date:
- 1 Jan 2010
Approved Sources 5340-01-581-3376
- Part Number
- Manufacturer
- Status
- 03002A1278-1
- Manufacturer
- 01365 - Marine Corps Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-581-3376
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Material Document And Classification [MDCL]
- Astm B211.6061-T6 National Spec All Material Responses Overall
- Surface Treatment [SFTT]
- Chromate Overall
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Class 3,Chromate Conversion Coating Mil Spec All Treatment Responses Overall

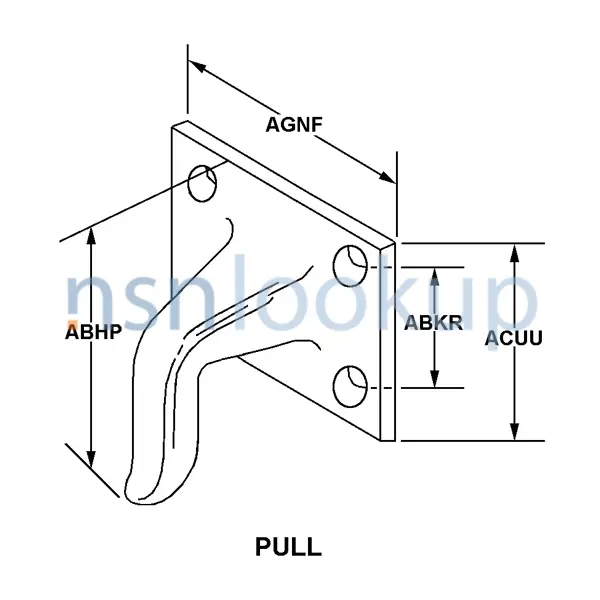

- Style Designator [STYL]
- Pull
- Overall Length [ABHP]
- 62.8 Millimeters Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 27.3 Millimeters Nominal
- Base Width [ACUU]
- 44.9 Millimeters Nominal
- Base Length [AGNF]
- 127.0 Millimeters Nominal
- Mounting Method [AXGY]
- Mounting Plate

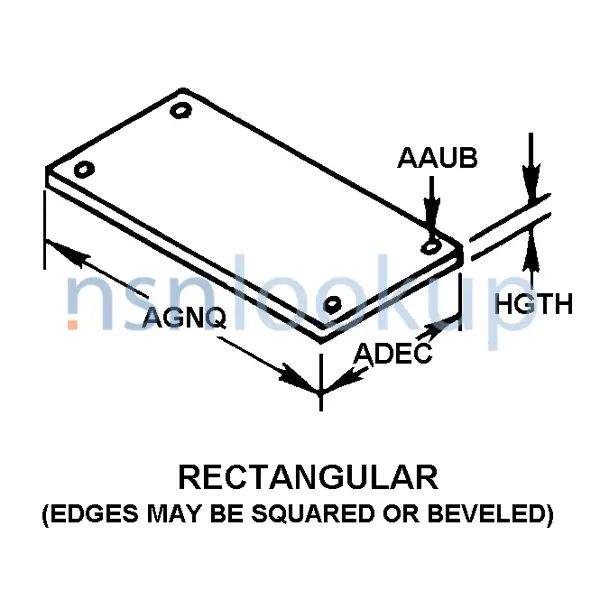

- Mounting Plate Style [ALMQ]
- Rectangular (Edges May Be Squared Or Beveled)
- Hole Diameter [AAUB]
- 3.9 Millimeters Nominal
- Plate Width [ADEC]
- 63.5 Millimeters Nominal
- Plate Length [AGNQ]
- 127.0 Millimeters Nominal
- Height [HGTH]
- 3.1 Millimeters Nominal
- Features Provided [CBBL]
- Handle Lock
- Special Features [FEAT]
- Drawing Distribution Statement C;Export Controlled
- End Item Identification [AGAV]
- Lav-C2a2;2355-01-539-3589
- Part Name Assigned By Controlling Agency [CXCY]
- Handle Lock
DLA Procurement Analysis 5340-01-581-3376
Management Data 5340-01-581-3376
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5340-01-581-3376
Freight Information 5340-01-581-3376
5340-01-581-3376 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-01-581-3376 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-01-581-3376 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-581-3376 is not classified as a special type of cargo when transported by water. 5340-01-581-3376 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-581-3376 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
