5340-01-579-0983
Handle Grip
5340015790983 015790983 12474998
An item of cylindrical or pistol design, made of metallic or nonmetallic material, specifically designed to be used on a handle to provide a formed gripping surface. Excludes types with integral switch(es) for control of armament. View more Handle Grip
May 2023
1
Marketplace 5340-01-579-0983
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-579-0983 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-579-0983 RQST NE Updated Every Day 5340-01-579-0983 RQST
Updated Every Day 5340-01-579-0983 RQST NE Related Documents 5340-01-579-0983 1+ Documents ( More...
Restrictions 5340-01-579-0983
5340-01-579-0983 is a Handle Grip that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-579-0983
- US Army (A919)
- Effective Date:
- 1 Oct 2009
- Supplementary Receivers:
- AZ
Approved Sources 5340-01-579-0983
- Part Number
- Manufacturer
- Status
- 12474998
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-579-0983
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- End Item Identification [AGAV]
- 2350-01-418-6654, Carrier,Personnel,Full Tracked
- Gripping Surface Condition [ABHG]
- Smooth
- Height [HGTH]
- 0.250 Inches Nominal
- Hole Diameter [AAUB]
- 0.460 Inches Nominal
- Material Document And Classification [MDCL]
- Tube, Steel, Carbon, Ty Optional Mt 1010 Thru Mt X 1020 Or 1010 Thru 1026. Condition Optional, Spec Astm A 512, A513 Or A 519, 1.000 Od X 0.125 Wall Assn Std Single Material Response Sleeve
- Material Document And Classification [MDCL]
- Steel, Carbon, Astm A 36 0.250 Thk Or Steel, Carbon, 1010 Thru 1025, Astm A 108 Or A 576, 0.250 Thk Assn Std Single Material Response Mounting Plate
- Material Document And Classification [MDCL]
- Steel, Carbon, 1010 Thru 1025, Astm A 576, Dia 0.625 Or Astm A 36 Assn Std Single Material Response Grip
- Material [MATT]
- Steel Overall
- Mounting Method [AXGY]
- Unthreaded Hole

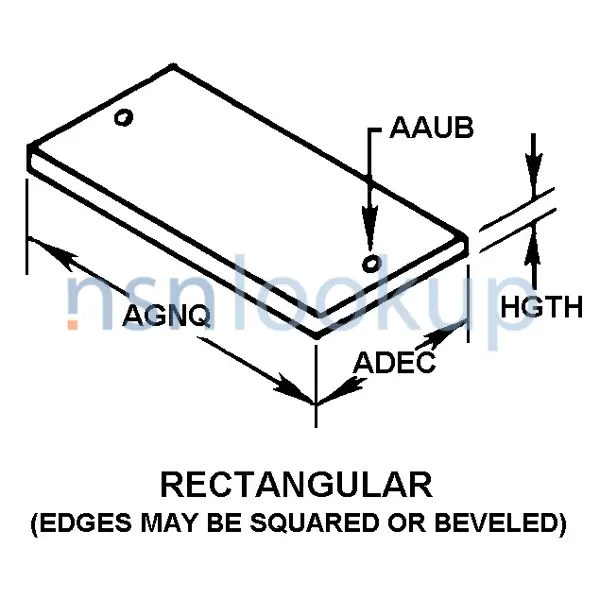

- Mounting Plate Style [ALMQ]
- Rectangular (Edges May Be Squared Or Beveled)
- Outside Diameter [ABKV]
- 2.000 Inches Nominal
- Inside Diameter [AARX]
- 0.625 Inches Nominal
- Plate Length [AGNQ]
- 3.500 Inches Nominal
- Plate Width [ADEC]
- 1.250 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Handle Assembly Trbine Access Door
- Style Designator [STYL]
- Cylindrical
- Surface Treatment Document And Classification [STDC]
- Astm B 633, Ty Ii, Sc2 0.3 Mills Thk Min Assn Std Single Treatment Response Grip
- Surface Treatment Document And Classification [STDC]
- Tt-C-490, Method Ii, Ty Iii Fed Spec Single Treatment Response Overall And 19207 1236902 Mfr Ref Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Grip
DLA Procurement Analysis 5340-01-579-0983
Management Data 5340-01-579-0983
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-579-0983
Freight Information 5340-01-579-0983
5340-01-579-0983 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-579-0983 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-579-0983 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-579-0983 is not classified as a special type of cargo when transported by water. 5340-01-579-0983 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-579-0983 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- M
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
