5340-01-565-5433
Ball Socket Seat
5340015655433 015655433 BALL END SUF. 20
A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE. View more Ball Socket Seat
January 2023
2
Marketplace 5340-01-565-5433
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-565-5433 1+ Documents (More...)
5340-01-565-5433 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-565-5433
Sources Datasheet Management RQST NE Updated Every Day 5340-01-565-5433 RQST Updated Every Day 5340-
Restrictions 5340-01-565-5433
5340-01-565-5433 is a Ball Socket Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-565-5433
- Spain (YB01)
- Effective Date:
- 1 Jul 2008
Approved Sources 5340-01-565-5433
- Part Number
- Manufacturer
- Status
- BALL END SUF. 20
- Manufacturer
- 05573 - Barnes Group Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-565-5433
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-B
- Material [MATT]
- Steel Corrosion Resisting
- Radius [ABGG]
- 10.0 Millimeters Nominal
- Special Features [FEAT]
- Socket For A 10Mm Ball

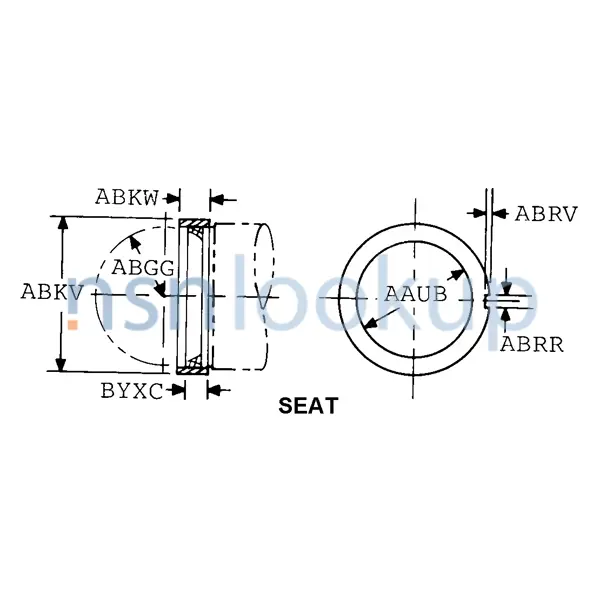

- Style Designator [STYL]
- Seat
Similar Supply Items to 5340-01-565-5433
Freight Information 5340-01-565-5433
5340-01-565-5433 has freight characteristics.. 5340-01-565-5433 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
