5340-01-558-6750
Butt Hinge
5340015586750 015586750 A3301778
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
May 2023
1
Marketplace 5340-01-558-6750
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-558-6750 1+ Documents (More...)
Updated Every Day 5340-01-558-6750 RQST NE Related Documents 5340-01-558-6750 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-558-6750 Butt Hinge 5340015586750015586750,A3301778
Restrictions 5340-01-558-6750
5340-01-558-6750 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-558-6750
- US Army (A919)
- Effective Date:
- 1 Nov 2007
- Supplementary Receivers:
- CL
Approved Sources 5340-01-558-6750
- Part Number
- Manufacturer
- Status
- A3301778
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-558-6750
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Material And Location [ANNQ]
- Aluminum Alloy, 6061 Body

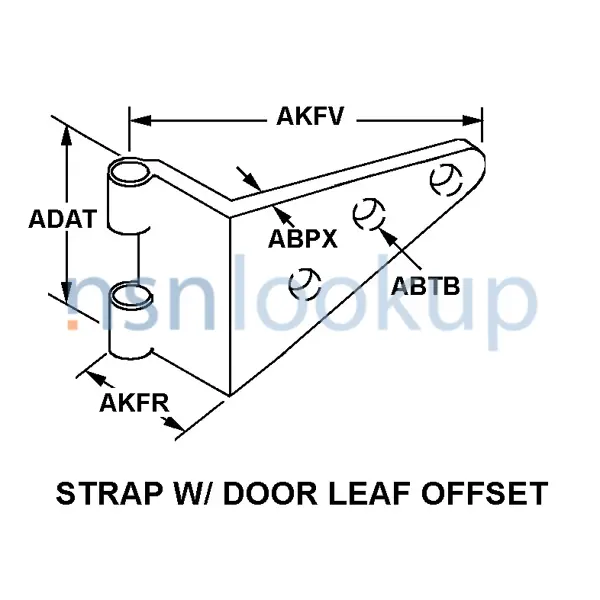

- Style Designator [STYL]
- Strap W/Door Leaf Offset
- Material Thickness [ABPX]
- 0.313 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.625 Inches Nominal
- Body Width [ADAT]
- 3.000 Inches Nominal
- Door Leaf Offset Distance [AKFR]
- 2.253 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 3
- Special Features [FEAT]
- Pad Is Made Of Sponge Or Expandable Rubber
- Part Name Assigned By Controlling Agency [CXCY]
- Hinge, Modified
DLA Procurement Analysis 5340-01-558-6750
Management Data 5340-01-558-6750
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-558-6750
Freight Information 5340-01-558-6750
5340-01-558-6750 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095300. A Sub NMFC of Z. It has a NMFC Description of HINGES/BUTTS NOI I/S. 5340-01-558-6750 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49860 which rates the freight between FCL and LCL. 5340-01-558-6750 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-558-6750 is not classified as a special type of cargo when transported by water. 5340-01-558-6750 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-558-6750 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
