5340-01-555-6069
Retaining Band
5340015556069 015556069 MLT8WH-LP
A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING. View more Retaining Band
January 2023
2
Marketplace 5340-01-555-6069
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-555-6069 1+ Documents (More...)
/fsg-53/fsc-5340/us
5340-01-555-6069 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-555-6069
RQST NE Updated Every Day 5340-01-555-6069 RQST Updated Every Day 5340-01-555-6069 RQST NE Restrictions
Restrictions 5340-01-555-6069
5340-01-555-6069 is a Retaining Band that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-555-6069
- Denmark (ZS01)
- Effective Date:
- 1 Sep 2007
Approved Sources 5340-01-555-6069
- Part Number
- Manufacturer
- Status
- MLT8WH-LP
- Manufacturer
- 06383 - Panduit Corp. (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-555-6069
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-J
- Basic Shape Style [AGTA]
- Flat

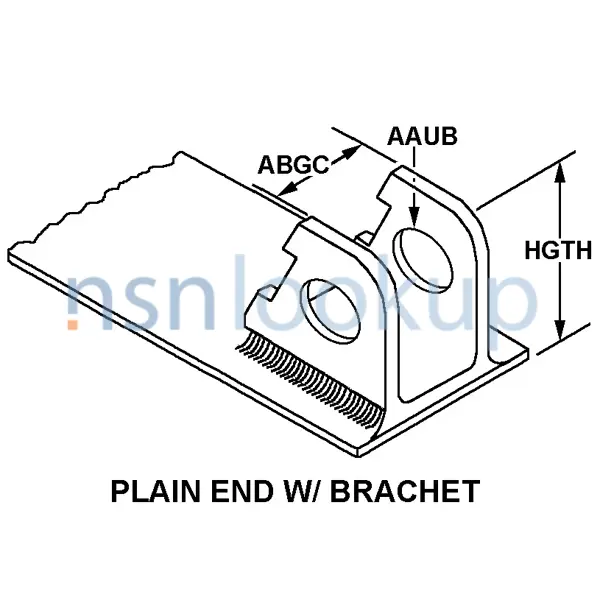

- End Style [ABQK]
- Plain End With Bracket
- Height [HGTH]
- 4.7 Millimeters Minimum And 6.3 Millimeters Maximum
- Material [MATT]
- Steel Comp 304
- Part Name Assigned By Controlling Agency [CXCY]
- Stainless Steel Wave-Ty, Heavy, 8In(203Mm) Max Bundle Diameter
- Length [ABRY]
- 679.0 Millimeters Nominal
- Material Document And Classification [MDCL]
- Aisi 304 Assn Std Single Material Response
- Slot Width [ABGC]
- 9.5 Millimeters Minimum And 11.0 Millimeters Maximum
- Special Features [FEAT]
- Package Quant 50, Min Tensil Strenth Lbs 450, Max Bundle Diam Mm 203.0 , Min Bundle Diam Mm 51.0; Tool-Gs-4Mt, Htmt, Pptmt, St2mt Or St3m5
- Width [ABGL]
- 7.9 Millimeters Nominal
- Thickness [ABNM]
- 0.20 Millimeters Minimum And 0.30 Millimeters Maximum
Similar Supply Items to 5340-01-555-6069
Freight Information 5340-01-555-6069
5340-01-555-6069 has freight characteristics.. 5340-01-555-6069 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
