5340-01-526-6367
Handwheel
5340015266367 015266367 C49667
An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL. View more Handwheel
November 2023
2
Marketplace 5340-01-526-6367
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-526-6367 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-526-6367 RQST NE Updated Every Day 5340-01-526-6367 RQST
Updated Every Day 5340-01-526-6367 RQST NE Related Documents 5340-01-526-6367 1+ Documents ( More...
Restrictions 5340-01-526-6367
5340-01-526-6367 is a Handwheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-526-6367
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-526-6367
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5340-01-526-6367
- Part Number
- Manufacturer
- Status
- C49667
- Manufacturer
- 05825 - O T S I (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-526-6367
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Drive Facility Style [AWJY]
- Single Keyway
- End Item Identification [AGAV]
- Heavyweight Torpedo Engine Assembly Stand
- Handle Counterbalancing Weight [AWKE]
- Not Included
- Handle Mounting Method [AWKC]
- Integral
- Handle Rotating Feature [AWKD]
- Not Included
- Handle Style [ALMP]
- Round

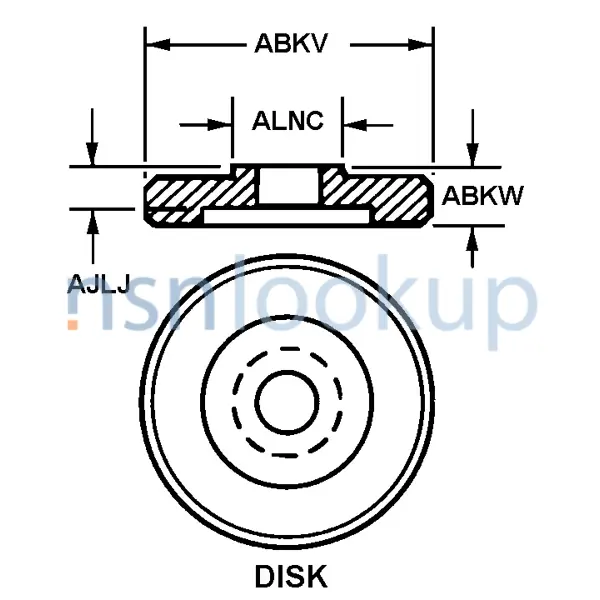

- Handwheel Style [AWJX]
- Disk
- Hub Outside Diameter [ALNC]
- 2.250 Inches Nominal
- Outside Diameter [ABKV]
- 10.000 Inches Nominal
- Inside Diameter [AARX]
- 0.375 Inches Nominal
- Keyway Depth [ABRV]
- 0.001 Inches Nominal
- Keyway Width [ABRR]
- 0.094 Inches Minimum And 0.096 Inches Maximum
- Material And Location [ANNQ]
- Aluminum Alloy Overall
- Ratchet [AWKF]
- Not Included
- Special Features [FEAT]
- Has 1/4-20Unc-2B Tap Thru Into Keyway, Located At 1/2 Inch From Base Of Handwheel.
