5340-01-515-0677
Rod End Connector
5340015150677 015150677 752-7068423-70 H832-0315-70
An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION. View more Rod End Connector
May 2023
1
Marketplace 5340-01-515-0677
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-515-0677 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-515-0677 RQST NE Updated Every Day 5340-01-515-0677 RQST
Updated Every Day 5340-01-515-0677 RQST NE Related Documents 5340-01-515-0677 1+ Documents ( More...
Restrictions 5340-01-515-0677
5340-01-515-0677 is a Rod End Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-515-0677
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5340-01-515-0677
- Part Number
- Manufacturer
- Status
- 752-7068423-70
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- H832-0315-70
- 96169 - Electric Boat Corporation (Active)
- Secondary Buy
- Secondary Buy

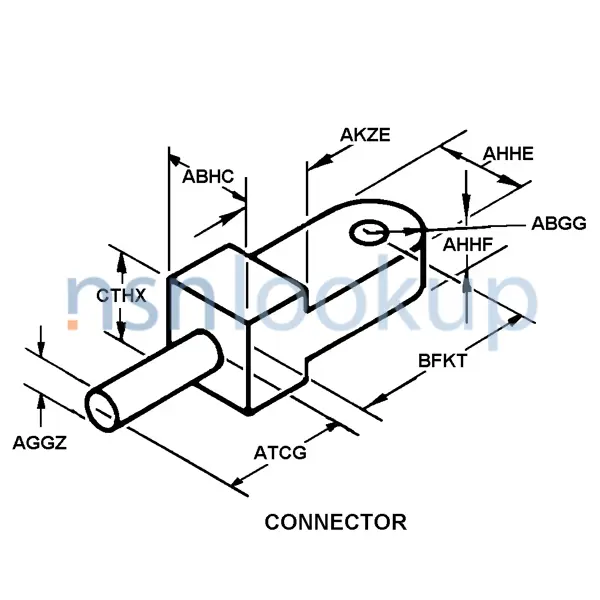

Datasheet 5340-01-515-0677
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0
- Distance From End To Hole Center [BFKT]
- 2.750 Inches Nominal
- End Item Identification [AGAV]
- Leg Interm Skid Assembly; W/S: Virginia Class Submarine, Ssn-774
- Hole Diameter [AAUB]
- 0.755 Inches Minimum And 0.756 Inches Maximum
- Hole Shape [BCLP]
- Round
- Material Document And Classification [MDCL]
- Mil-S-22698, Eh-36T, Cl-P Mil Spec Single Material Response Overall
- Nominal Thread Size [CQJX]
- 0.750 Inches Body
- Material [MATT]
- Steel Overall
- Radius [ABGG]
- 0.750 Inches Nominal
- Rod Connection End Length [AKZE]
- 1.000 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.750 Inches Nominal
- Shank Overall Length [ATCG]
- 4.500 Inches Nominal
- Overall Height [CTHX]
- 1.500 Inches Nominal
- Overall Width [ABHC]
- 1.500 Inches Nominal
- Special Features [FEAT]
- Rod End Has Adjusting Head
- Thread Length [AASA]
- 4.250 Inches Minimum Body
- Thread Series Designator [THSD]
- Unc Body
- Thread Quantity Per Inch [CMLP]
- 10 Body
- Tongue Width [AHHE]
- 1.500 Inches Nominal
- Tongue Thickness [AHHF]
- 0.990 Inches Minimum And 0.995 Inches Maximum
- Style Designator [STYL]
- Connector
- Thread Class [AAJD]
- 2A Body
- Thread Direction [AAJF]
- Right-Hand Body
DLA Procurement Analysis 5340-01-515-0677
Management Data 5340-01-515-0677
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-01-515-0677
Freight Information 5340-01-515-0677
5340-01-515-0677 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-515-0677 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-515-0677 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-515-0677 is not classified as a special type of cargo when transported by water. 5340-01-515-0677 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
