5340-01-502-8821
Door Handle
5340015028821 015028821 512-7108084-69 512-7108084-6 H643-1702-69 7108084
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
5
Marketplace 5340-01-502-8821
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-502-8821 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-502-8821 RQST NE Updated Every Day 5340-01-502-8821 RQST
Updated Every Day 5340-01-502-8821 RQST NE Related Documents 5340-01-502-8821 5+ Documents ( More...
/fsg-31/fsc-3120/us
-25H643-1702-25512-7108084 A tubular shaped item with or without flange(s) designed to United States
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-502-8821 Door Handle 5340015028821 015028821 -69
-25H643-1702-25512-7108084 A tubular shaped item with or without flange(s) designed to United States
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-502-8821 Door Handle 5340015028821 015028821 for
-1512-7108084 A part of an AIR CLEANER, INTAKE designed as a housing for a FILTER ELEMENT BUY NE FedMall
Intake Air Cleaner Filter Body 4310015069295 -1 512-7108084 A part of an AIR CLEANER, INTAKE designed
/www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01-501-5382 Filter Mounting Bracket 4330015015382 512-7108084
Sources Datasheet Management /fsc-4330/us 4330-01-501-5382 Filter Mounting Bracket 4330015015382 512-7108084
Restrictions 5340-01-502-8821
5340-01-502-8821 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-502-8821
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5340-01-502-8821
- Part Number
- Manufacturer
- Status
- 512-7108084-6
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- H643-1702-69
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- 512-7108084-69
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 7108084
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5340-01-502-8821
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Steel Corrosion Resisting Overall

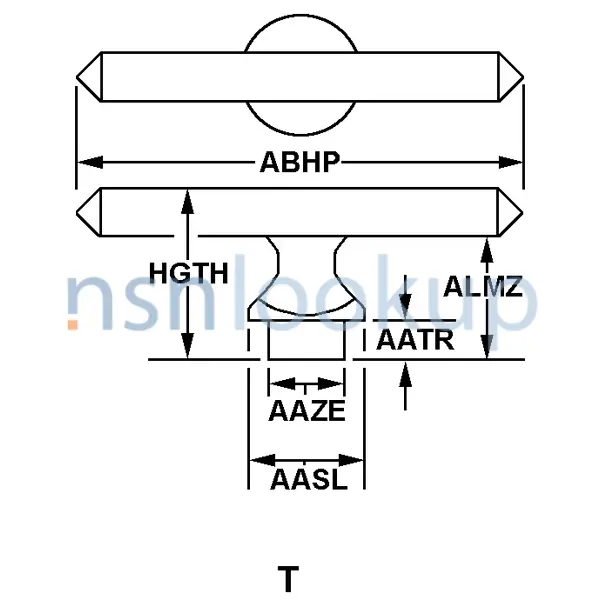

- Style Designator [STYL]
- T
- Head Diameter [AASL]
- 1.000 Inches Nominal
- Shank Diameter [AAZE]
- 1.000 Inches Nominal
- Overall Length [ABHP]
- 5.000 Inches Nominal
- Handle Clearance [ALMZ]
- 21.810 Inches Nominal
- Mounting Method [AXGY]
- Welded
- Height [HGTH]
- 22.820 Inches Nominal
- End Item Identification [AGAV]
- Platform Elevator
- Part Name Assigned By Controlling Agency [CXCY]
- Handle, Door
DLA Procurement Analysis 5340-01-502-8821
Management Data 5340-01-502-8821
Navy
- Cognizance:
- 3B
Similar Supply Items to 5340-01-502-8821
Freight Information 5340-01-502-8821
5340-01-502-8821 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-01-502-8821 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-01-502-8821 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-502-8821 is not classified as a special type of cargo when transported by water. 5340-01-502-8821 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-502-8821 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
