5340-01-499-2251
Door Handle
5340014992251 014992251 H547-1112-A5 167-7066791-A5
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
November 2023
3
Marketplace 5340-01-499-2251
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-499-2251 1+ Documents (More...)
(Identification) 1/3 NSN 5340-01-499-2251 (Identification) 2/3 NSN 5340-01-499-2251 (Identification
BUY NE FedMall Updated Every Day 5340-01-499-2251 RQST NE Updated Every Day 5340-01-499-2251 RQST
Restrictions 5340-01-499-2251
5340-01-499-2251 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-01-499-2251
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- JB
Approved Sources 5340-01-499-2251
- Part Number
- Manufacturer
- Status
- H547-1112-A5
- Manufacturer
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- 167-7066791-A5
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-499-2251
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Effective Length [ABNZ]
- 0.380 Inches Nominal
- End Item Identification [AGAV]
- Los Angeles Class Ssn(688); Door Ay Bree
- Accommodated Shaft Diameter [ABVM]
- 0.562 Inches Minimum And 0.564 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 0.500 Inches Nominal
- Handle Clearance [ALMZ]
- 2.000 Inches Nominal
- Handle Height [AGES]
- 1.375 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-N-281, Class A, Form 1, Cd Or Hf Mil Spec Single Material Response Overall
- Material [MATT]
- Nickel Alloy Overall
- Mounting Facility Diameter [CLMQ]
- 0.498 Inches Minimum And 0.499 Inches Maximum
- Mounting Facility Length [ABKP]
- 1.880 Inches Nominal
- Mounting Method [AXGY]
- Pin

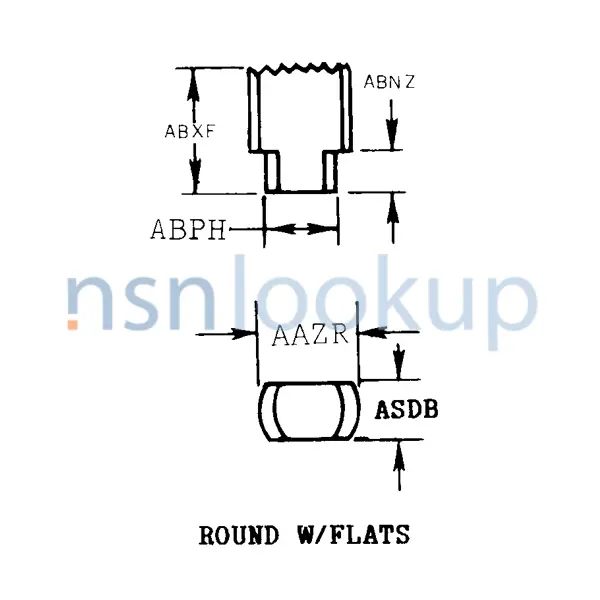

- Integral Shaft Style [ALMR]
- Round W/Flats
- Major Diameter [AAZR]
- 1.125 Inches Nominal
- Shaft Accommodation Style [ABHH]
- Round
- Shaft Length [ABXF]
- 6.080 Inches Nominal
- Small End Diameter [ABPH]
- 0.375 Inches Nominal
- Overall Length [ABHP]
- 4.380 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Handle Assy, Handwheel
- Special Features [FEAT]
- Assembly Includes One Each: Handle, Spindle, Spring, Spindle Pin, Retainer Nut, Washer, And Setscrew, 0.138-32Unc-3Ax0.250
- Width Across Flats [ASDB]
- 0.648 Inches Minimum And 0.650 Inches Maximum
- Style Designator [STYL]
- L
Weapon Systems (WSDC) 5340-01-499-2251
DLA Procurement Analysis 5340-01-499-2251
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-499-2251
Navy
- Cognizance:
- 3B
Similar Supply Items to 5340-01-499-2251
Freight Information 5340-01-499-2251
5340-01-499-2251 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-01-499-2251 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-01-499-2251 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-499-2251 is not classified as a special type of cargo when transported by water. 5340-01-499-2251 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-499-2251
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-499-2251 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
