5340-01-497-6327
Rod End Clevis
5340014976327 014976327 566-7067170-202 H625-0308-202 566-70670-202 H625-0308 70670
A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION. View more Rod End Clevis
November 2023
4
Marketplace 5340-01-497-6327
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-497-6327 5+ Documents (More...)
/fsg-53/fsc-5340/us
BUY NE FedMall Updated Every Day 5340-01-497-6327 RQST NE Updated Every Day 5340-01-497-6327 RQST
Updated Every Day 5340-01-497-6327 RQST NE Related Documents 5340-01-497-6327 5+ Documents ( More...
(Active) Primary Buy RNCC 3 RNVC 2 DAC 2 XM-70670 31/4XM- 70670 ( XM-79670-52-2700-O-12.5'-BN-31/4XM
-70670 (Active) Primary Buy RNCC 3 RNVC 2 DAC 2 XM-70670 04034 31/ 4XM-70670 ( XM-79670-52-2700-O-12.5
Account Upgrade 3010-01-497-4704Nonvehicular Universal Joint3010014974704 014974704 566-7067170 -A3 H625-0308
(s) designed to reduce friction -A2 566-7067170 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-497-6327
Account Upgrade 5340-01-497-6327Rod End Clevis5340014976327 014976327 566-7067170-202 H625-0308-202
566-70670 -202 H625-0308 70670 A forked part, having transverse hole(s) or slot(s) in each arm (prong
-205 H625-0308 7067170 An item which has one end designed to form a rigid connection on Tackle Block
3940016524125016524125 -403 H625-0308-403 566-7067170H625-0308 A mechanical device -22 566-7067170 A
Restrictions 5340-01-497-6327
5340-01-497-6327 is a Rod End Clevis that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-497-6327
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDJB
Approved Sources 5340-01-497-6327
- Part Number
- Manufacturer
- Status
- 566-7067170-202
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- H625-0308-202
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- 566-70670-202
- 53711 - Naval Sea Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 566-7067170-202
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- H625-0308
- 96169 - Electric Boat Corporation (Active)
- Informational Drawing
- Informational Drawing
- 70670
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5340-01-497-6327
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0

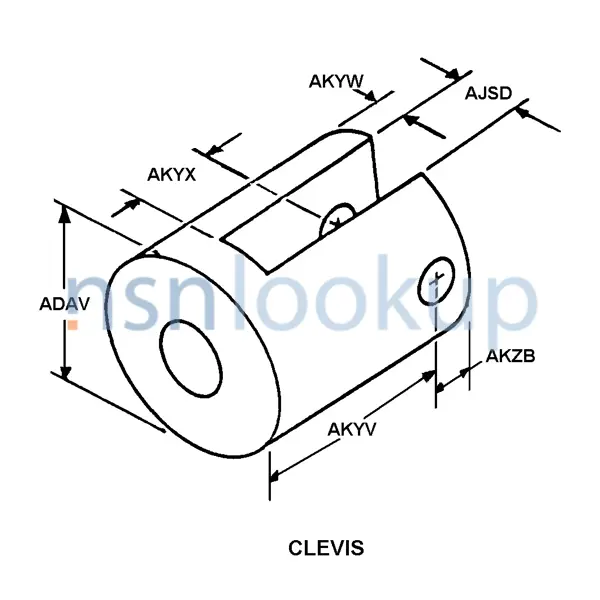

- Distance From Pivot Pinhole Center To Rod Connection End [AKYV]
