5340-01-493-3493
Bridge Clamp
5340014933493 014933493 7072337-1 751-7072306-23 751-7072337-1 7072305-23 7072306-23
A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal. View more Bridge Clamp
November 2023
1
Marketplace 5340-01-493-3493
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-493-3493 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-493-3493 RQST NE Updated Every Day 5340-01-493-3493 RQST
Updated Every Day 5340-01-493-3493 RQST NE Related Documents 5340-01-493-3493 1+ Documents ( More...
Restrictions 5340-01-493-3493
5340-01-493-3493 is a Bridge Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-01-493-3493
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDJB
Approved Sources 5340-01-493-3493
- Part Number
- Manufacturer
- Status
- 7072337-1
- Manufacturer
- 96169 - Electric Boat Corporation (Active)
- Primary Buy
- Primary Buy
- 751-7072306-23
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 751-7072337-1
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 7072305-23
- 96169 - Electric Boat Corporation (Active)
- Secondary Buy
- Secondary Buy
- 7072306-23
- 96169 - Electric Boat Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-493-3493
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Material [MATT]
- Aluminum Alloy Overall

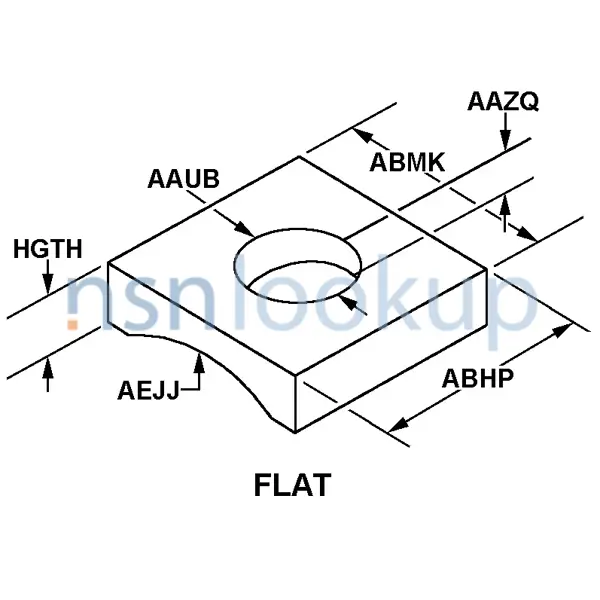

- Style Designator [STYL]
- Flat
- Hole Diameter [AAUB]
- 0.221 Inches Nominal
- Hole Depth [AAZQ]
- 0.380 Inches Nominal
- Overall Length [ABHP]
- 0.370 Inches Nominal
- Overall Width [ABMK]
- 1.800 Inches Nominal
- Inside Radius [AEJJ]
- 0.250 Inches Nominal
- Height [HGTH]
- 0.380 Inches Nominal
- Special Features [FEAT]
- Has 2 Holes With Centers 0.500 Inch From Center Of Item
- Supplementary Features [SUPP]
- Made From Astm-B150 Alloy
- End Item Identification [AGAV]
- Los Angeles Class Ssn
Weapon Systems (WSDC) 5340-01-493-3493
DLA Procurement Analysis 5340-01-493-3493
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-493-3493
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-493-3493
Freight Information 5340-01-493-3493
5340-01-493-3493 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095170. A Sub NMFC of X. It has a NMFC Description of HARDWARE DOOR/WINDOW/PARTS. 5340-01-493-3493 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 98540 which rates the freight between FCL and LCL. 5340-01-493-3493 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-493-3493 is not classified as a special type of cargo when transported by water. 5340-01-493-3493 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5340-01-493-3493 2 Records
Contracting Technical Data File (CTDF) 5340-01-493-3493 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
