5340-01-488-3669
Nut And Bolt Retainer
5340014883669 014883669 BACR10G32
An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT. View more Nut And Bolt Retainer
January 2023
2
Marketplace 5340-01-488-3669
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-488-3669 1+ Documents (More...)
United States (US) 4. 5340-01-488-3669 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-01-488-3669 RQST Updated Every Day 5340-01-488-3669 RQST NE Related Documents
Restrictions 5340-01-488-3669
5340-01-488-3669 is a Nut And Bolt Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-488-3669
- US Air Force (FLL5)
- Effective Date:
- 1 Aug 2001
Approved Sources 5340-01-488-3669
- Part Number
- Manufacturer
- Status
- BACR10G32
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy

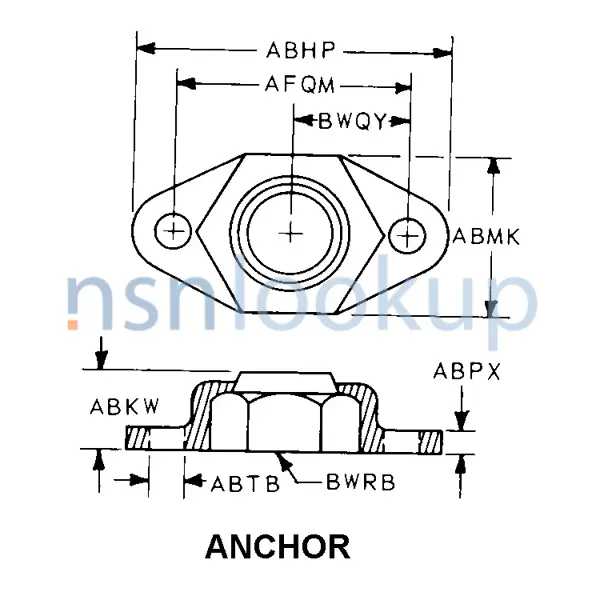

Datasheet 5340-01-488-3669
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-A
- Center To Center Distance Between Cup And Mounting Hole [BWQY]
- 0.344 Inches Nominal
- Distance Between Mounting Hole Centers [AFQM]
- 0.688 Inches Nominal
- End Item Identification [AGAV]
- F-22 Raptor
- Material Thickness [ABPX]
- 0.035 Inches Nominal
- Material [MATT]
- Steel
- Mounting Hole Diameter [ABTB]
- 0.098 Inches Nominal
- Overall Height [ABKW]
- 0.172 Inches Nominal
- Overall Length [ABHP]
- 1.000 Inches Nominal
- Overall Width [ABMK]
- 0.500 Inches Nominal
- Width Between Cup Flats [BWRB]
- 0.438 Inches Nominal
- Style Designator [STYL]
- Anchor
Management Data 5340-01-488-3669
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2011
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Budget:
- S
- 57X3010 - Aircraft Replenishment Spares
- Aggregation Code:
- FR
- F-22 AIRCRAFT
- Price Validation Code:
- E
- The current standard price is an estimated price.
Estimated Price challenges are allowed but follow procedures in para 60.b. (3) of section L of this manual.
This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5340-01-488-3669
Freight Information 5340-01-488-3669
5340-01-488-3669 has freight characteristics.. 5340-01-488-3669 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
