5340-01-480-4447
Rod End Connector
5340014804447 014804447 123047-2
An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION. View more Rod End Connector
May 2023
1
Marketplace 5340-01-480-4447
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-480-4447 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-480-4447 RQST NE Updated Every Day 5340-01-480-4447 RQST
Updated Every Day 5340-01-480-4447 RQST NE Related Documents 5340-01-480-4447 1+ Documents ( More...
Restrictions 5340-01-480-4447
5340-01-480-4447 is a Rod End Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-480-4447
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5340-01-480-4447
- Part Number
- Manufacturer
- Status
- 123047-2
- Manufacturer
- 82340 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-480-4447
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0

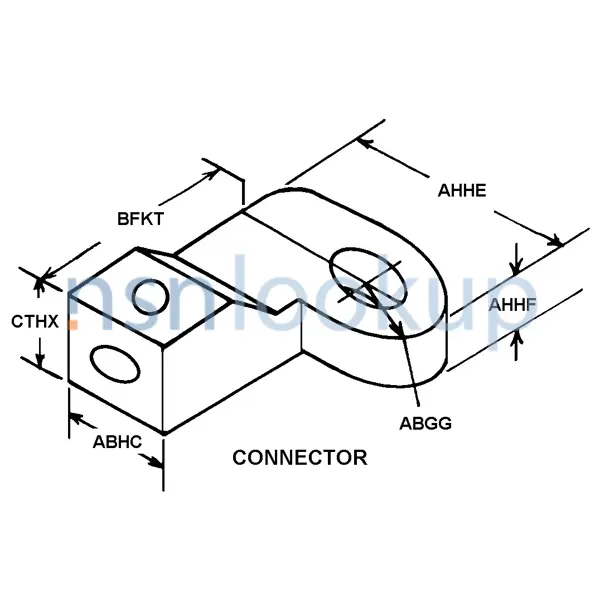

- Distance From End To Hole Center [BFKT]
- 3.820 Inches Nominal
- Hole Diameter [AAUB]
- 0.385 Inches Minimum And 0.392 Inches Maximum
- Hole Shape [BCLP]
- Round
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Material Document And Classification [MDCL]
- Astm B209, T651 Assn Std Single Material Response Overall
- Radius [ABGG]
- 0.385 Inches Minimum And 0.392 Inches Maximum
- Overall Height [CTHX]
- 1.380 Inches Nominal
- Overall Width [ABHC]
- 3.630 Inches Nominal
- Special Features [FEAT]
- Fitting-Rod End, Trough, Retrieval Rig, Left Hand
- Tongue Width [AHHE]
- 1.380 Inches Nominal
- Tongue Thickness [AHHF]
- 0.750 Inches Nominal
- Style Designator [STYL]
- Connector
