5340-01-478-3439
Door Handle
5340014783439 014783439 11453549
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
4
Marketplace 5340-01-478-3439
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-478-3439 1+ Documents (More...)
Door Handle 5340014783439 014783439,11453549 11453549 A device designed to actuate the mechanism of
RQST NE Updated Every Day 5340-01-478-3439 RQST Updated Every Day 5340-01-478-3439 RQST NE Restrictions
Restrictions 5340-01-478-3439
5340-01-478-3439 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-478-3439
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 2000
Approved Sources 5340-01-478-3439
- Part Number
- Manufacturer
- Status
- 11453549
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-478-3439
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Mounting Facility Diameter [CLMQ]
- 0.250 Inches Minimum And 0.256 Inches Maximum
- Mounting Method [AXGY]
- Pin
- Shaft Accommodation Style [ABHH]
- Round
- Overall Length [ABHP]
- 8.380 Inches Nominal
- Special Features [FEAT]
- Assembly Of;Handle-11453530, Shaft-11453548, Pin-Spring-Ms171659, O-Ring-Ms29513-115

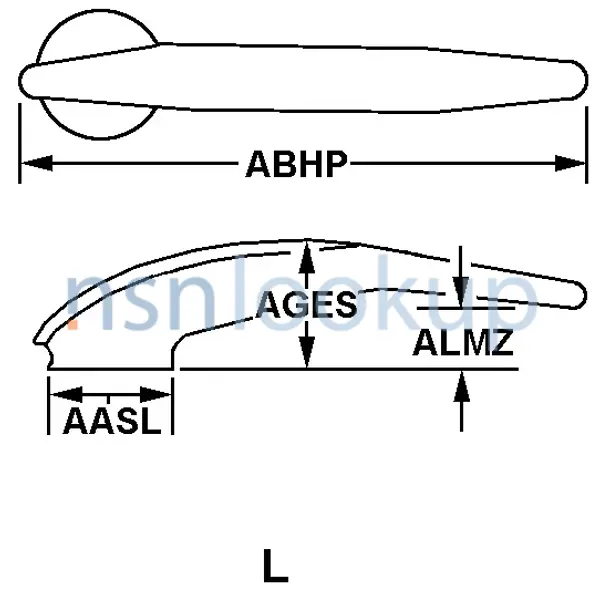

- Style Designator [STYL]
- L
Weapon Systems (WSDC) 5340-01-478-3439
DLA Procurement Analysis 5340-01-478-3439
Management Data 5340-01-478-3439
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-478-3439
Freight Information 5340-01-478-3439
5340-01-478-3439 has freight characteristics.. 5340-01-478-3439 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Contracting Technical Data File (CTDF) 5340-01-478-3439 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
