5340-01-470-8022
Luggage Handle
5340014708022 014708022 1003350P 1003350P-1
An item of various shapes, usually U-shaped. It may be flexible. It is designed to be mounted to a piece of luggage to provide facilities for lifting, carrying and the like. View more Luggage Handle
May 2023
2
Marketplace 5340-01-470-8022
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-470-8022 1+ Documents (More...)
/fsg-53/fsc-5340/us
RQST NE Updated Every Day 5340-01-470-8022 RQST Updated Every Day 5340-01-470-8022 RQST NE Related Documents
5340-01-470-8022 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-470-8022
Restrictions 5340-01-470-8022
5340-01-470-8022 is a Luggage Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-01-470-8022
- National Security Agency (DGX1)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
- Poland (WP01)
- Effective Date:
- 1 Oct 2007
Approved Sources 5340-01-470-8022
- Part Number
- Manufacturer
- Status
- 1003350P
- Manufacturer
- 80249 - Bae Systems Information And (Active)
- Incomplete Reference
- Incomplete Reference
- 1003350P-1
- 80249 - Bae Systems Information And (Active)
- Primary Buy
- Primary Buy

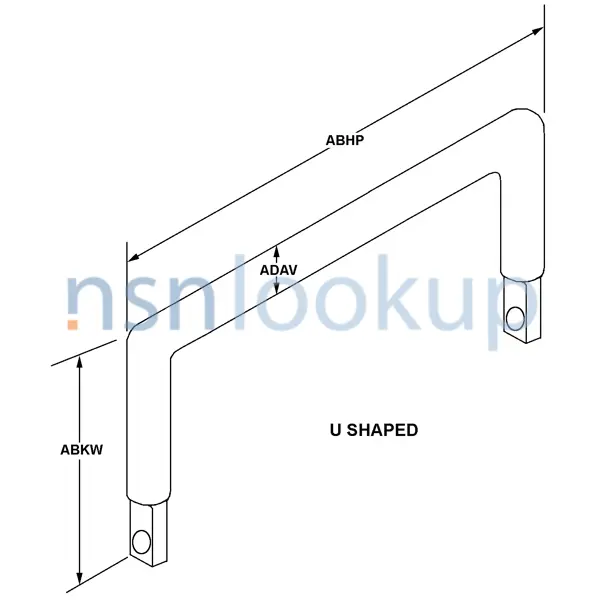

Datasheet 5340-01-470-8022
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Aluminum Alloy 6063 Handle
- Style Designator [STYL]
- U
- Overall Length [ABHP]
- 4.000 Inches Nominal
- Overall Height [ABKW]
- 3.090 Inches Nominal
- Overall Diameter [ADAV]
- 0.250 Inches Nominal
- Mounting Facility Diameter [CLMQ]
- 0.104 Inches Nominal
- Gripping Surface Condition [ABHG]
- Smooth
- End Item Identification [AGAV]
- F-16
DLA Procurement Analysis 5340-01-470-8022
Management Data 5340-01-470-8022
Similar Supply Items to 5340-01-470-8022
Freight Information 5340-01-470-8022
5340-01-470-8022 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 187700. A Sub NMFC of X. It has a NMFC Description of TRAVELING BAG:HANDELS,TRUNK,LEATHER. 5340-01-470-8022 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48550 which rates the freight between FCL and LCL. 5340-01-470-8022 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 755 for ocean manifesting and military sealift. 5340-01-470-8022 is not classified as a special type of cargo when transported by water. 5340-01-470-8022 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-470-8022 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
