5340-01-463-0542
Spring Tension Clip
5340014630542 014630542 303051
A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available. View more Spring Tension Clip
November 2023
4
Marketplace 5340-01-463-0542
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-463-0542 5+ Documents (More...)
United States (US) 4. 5340-01-463-0542 Marketplace Restrictions Approved Sources Datasheet Management
Day 5340-01-463-0542 RQST Updated Every Day 5340-01-463-0542 RQST NE Related Documents 5340-01-463-0542
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-463-0542 Spring Tension Clip 5340014630542 014630542
$1 a day Upgrade your Account Upgrade 5340-01-463-0542Spring Tension Clip5340014630542 014630542 303051
browser . 6530-01 Disposal Container6530016947658 016947658 303051 https//www.nsnlookup.com /fsg-41/
Clip 5340014630542 014630542 in your web browser . 5340-33-203-6361Shimmy Damper5340332036361 332036361
fsg-47/fsc-4730/uk 4730-99-781-0618 Pipe Elbow Adaptor 4730997810618997810618 C 6071062 C 607H926-303051
4730997810618997810618 www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-781-0618 Hose4720016029684 016029684 303051
www.nsnlookup.com /fsg-53/fsc-5305/uk 5305-99-297-7004 Machine Screw 5305992977004992977004 BS4183-TABLE 5MF-303051
NumberManufacturerStatusBS4183-TABLE 5 K7766 - Bsi Standards Limited (Active) Incomplete Standard RNCC 4 RNVC 1 DAC 4 MF-303051
Restrictions 5340-01-463-0542
5340-01-463-0542 is a Spring Tension Clip that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-463-0542
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-463-0542
- US Air Force (FGGI)
- Effective Date:
- 1 Aug 2007
- Former MOE Rule:
- FGG5
- Singapore (YJ01)
- Effective Date:
- 1 Dec 2012
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2010
Approved Sources 5340-01-463-0542
- Part Number
- Manufacturer
- Status
- 303051
- Manufacturer
- 321H5 - Parkway Products, Inc. (Active)
- Primary Buy
- Primary Buy
- 303051
- 0ALL2 - Amoco Torlon (Active)
- Original Design
- Original Design

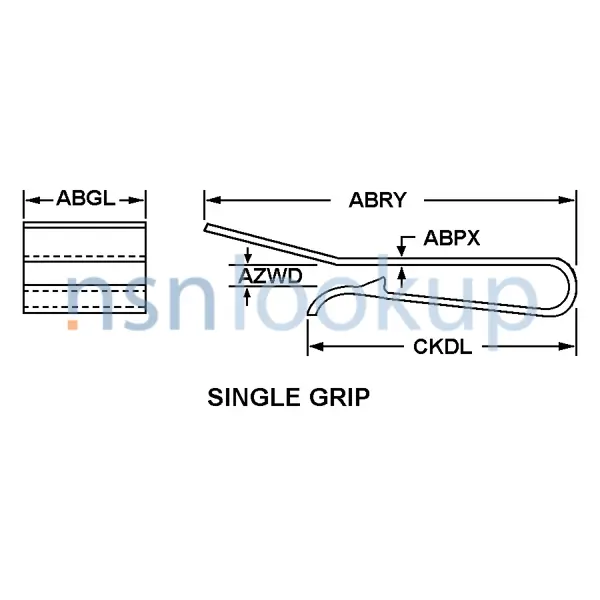

Datasheet 5340-01-463-0542
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- End Item Identification [AGAV]
- 1F-15C-3-2
- Material Thickness [ABPX]
- 0.045 Inches Minimum And 0.055 Inches Maximum
- Material [MATT]
- Plastic Overall
- Mounting Method [AXGY]
- Integral
- Length [ABRY]
- 0.805 Inches Minimum And 0.815 Inches Maximum
- Loop Opening Width [AZWD]
- 0.032 Inches Minimum And 0.036 Inches Maximum
- Prong/Lip Length [CKDL]
- 0.642 Inches Minimum And 0.652 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Retainer, Clip
- Special Features [FEAT]
- Each Part To Be Stamped In White With "Forward" Stamped On Side Opposite Split; Corner Radius (4) 0.050 Pom 0.010 In.
- Width [ABGL]
- 0.663 Inches Minimum And 0.673 Inches Maximum
- Style Designator [STYL]
- Single Grip
Weapon Systems (WSDC) 5340-01-463-0542
DLA Procurement Analysis 5340-01-463-0542
- Last Stock Position:
- 880 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-463-0542
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2020
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2019
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- K
- U/I Contains 20 Ea
- 00000000020EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 20 Ea
- 00000000020EA
- K
Similar Supply Items to 5340-01-463-0542
Freight Information 5340-01-463-0542
5340-01-463-0542 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-463-0542 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-463-0542 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-463-0542 is not classified as a special type of cargo when transported by water. 5340-01-463-0542 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-463-0542
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-463-0542 9 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L022V2724
- 06 Apr 2022
- Subscribe
- 374
- Subscribe
- Subscribe
- Subscribe
- SPE5E921V1198
- 24 Jun 2021
- Subscribe
- 215
- Subscribe
- Subscribe
- Subscribe
- SPE5EJ21V2115
- 16 Feb 2021
- Subscribe
- 458
- Subscribe
- Subscribe
- Subscribe
- SPE5E319V2732
- 29 Nov 2018
- Subscribe
- 210
- Subscribe
- Subscribe
- Subscribe
- SPE5EK18V3795
- 26 Apr 2018
- Subscribe
- 326
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05080741
- 05 Sep 2017
- Subscribe
- 113
- Subscribe
- Subscribe
- Subscribe
- SPE5EK15M1491
- 15 May 2015
- Subscribe
- 293
- Subscribe
- Subscribe
- Subscribe
- SPE5EK15V3522
- 21 Apr 2015
- Subscribe
- 357
- Subscribe
- Subscribe
- Subscribe
- SPE5EK15M0944
- 05 Mar 2015
- Subscribe
- 1086
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-01-463-0542 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
