5340-01-458-8576
Bow Handle
5340014588576 014588576 2351-00092-01
An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR. View more Bow Handle
May 2023
1
Marketplace 5340-01-458-8576
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-458-8576 1+ Documents (More...)
5340-01-458-8576 RQST NE Related Documents 5340-01-458-8576 1+ Documents ( More... ) https//www.nsnlookup.com
/fsg-53/fsc-5340/us 5340-01-458-8576 Bow Handle 5340014588576014588576 2351-00092-01 An item, usually
Restrictions 5340-01-458-8576
5340-01-458-8576 is a Bow Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-458-8576
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5340-01-458-8576
- Part Number
- Manufacturer
- Status
- 2351-00092-01
- Manufacturer
- 26344 - New Haven Mfg Corp (Obsolete)
- Original Design
- Original Design
- 2351-00092-01
- 95542 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5340-01-458-8576
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Color [HUES]
- Black Overall
- Handle Clearance [ALMZ]
- 2.5000 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-200/8 Fed Spec Single Material Response Overall Or Qq-A-225/8 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Overall Length [ABHP]
- 5.4400 Inches Nominal

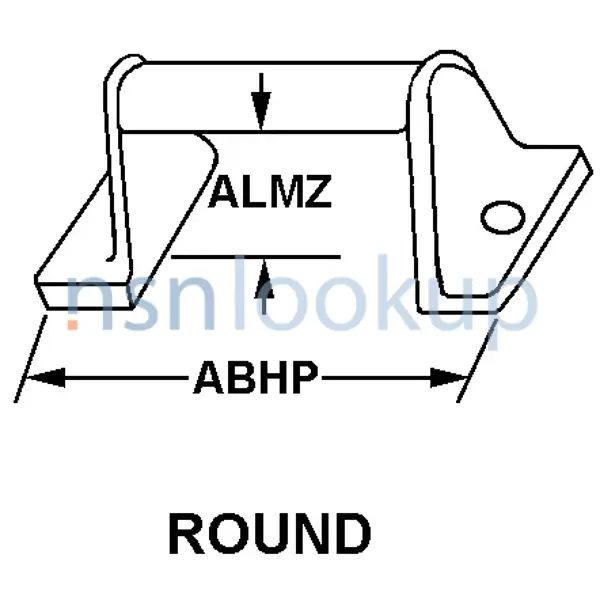

- Style Designator [STYL]
- Round
- Surface Treatment Document And Classification [STDC]
- Qq-A-8625, Ty 2, Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
DLA Procurement Analysis 5340-01-458-8576
Management Data 5340-01-458-8576
Similar Supply Items to 5340-01-458-8576
Freight Information 5340-01-458-8576
5340-01-458-8576 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-458-8576 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-458-8576 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-458-8576 is not classified as a special type of cargo when transported by water. 5340-01-458-8576 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-458-8576 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
