5340-01-458-5395
Webbing Strap
5340014585395 014585395 12940980
A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies. View more Webbing Strap
November 2023
1
Marketplace 5340-01-458-5395
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-458-5395 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-458-5395 RQST NE Updated Every Day 5340-01-458-5395 RQST
Updated Every Day 5340-01-458-5395 RQST NE Related Documents 5340-01-458-5395 1+ Documents ( More...
Restrictions 5340-01-458-5395
5340-01-458-5395 is a Webbing Strap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-458-5395
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BF
Approved Sources 5340-01-458-5395
- Part Number
- Manufacturer
- Status
- 12940980
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-458-5395
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-B
- Distance From Strap End To First Grommet Hole Center [BYCS]
- 1.0000 Inches Nominal
- End Attachment/Fastening Facility [CBSZ]
- Distance Between Grommet Hole Centers [BYCT]
- 1.0000 Inches Nominal
- End Type [APTD]
- Both W/Attachments
- Fastened Ring Feature [BYDB]
- Included
- Grommet Barrel Style Designator [CXLC]
- Straight Round Type

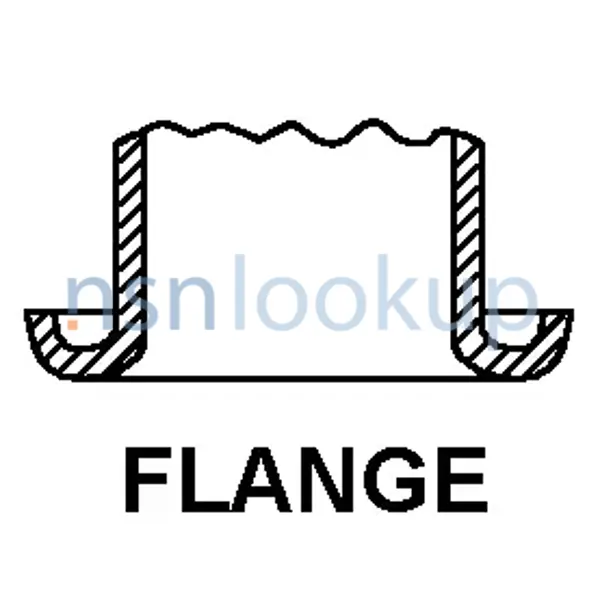

- Grommet Flange Style Designator [CXLS]
- Flange
- Grommet Quantity [BYCQ]
- 2
- Grommet Washer Style Designator [CXMC]
- Barrel Type
- Material Document And Classification [MDCL]
- Mil-W-4088 Mil Spec Single Material Response
- Material [MATT]
- Plastic Polyhexamethylene Adipamide
- Length [ABRY]
- 14.0000 Inches Minimum And 14.5000 Inches Maximum
- Ring Fastening Method [BYDC]
- Sewed
- Ring Material [BRRX]
- Steel, Corrosion Resisting
- Ring Location [BYDD]
- The Item Is Located At Right End Of Dtrap
- Ring Shape [BYCZ]
- D
- Width [ABGL]
- 3.0000 Inches Nominal
Weapon Systems (WSDC) 5340-01-458-5395
DLA Procurement Analysis 5340-01-458-5395
- Last Stock Position:
- 142 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-458-5395
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5340-01-458-5395
Freight Information 5340-01-458-5395
5340-01-458-5395 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-458-5395 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-458-5395 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-458-5395 is not classified as a special type of cargo when transported by water. 5340-01-458-5395 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-458-5395
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-458-5395 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
