5340-01-454-3567
Angle Bracket
5340014543567 014543567 10101450-005
A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF. View more Angle Bracket
May 2023
1
Marketplace 5340-01-454-3567
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-454-3567 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-454-3567 RQST NE Updated Every Day 5340-01-454-3567 RQST
Updated Every Day 5340-01-454-3567 RQST NE Related Documents 5340-01-454-3567 4+ Documents ( More...
Angle Bracket 5340014543567 014543567 Upgrade for $1 a day Upgrade your Account Upgrade 5340-01
-454-3567Angle Bracket5340014543567 014543567 10101450 www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-
7310/fr 7310-14-454-3567 RQST NE Updated Every Day https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-454-3567
Angle Bracket 5340014543567 014543567 (Identification) 1/3 NSN 5340-01-454-3567 (Identification
Angle Bracket 5340014543567 014543567 3567 (Identification) RQST NE Updated Every Day 6620-00-454
Angle Bracket 5340014543567 014543567 www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01- https//www.nsnlookup.com
Restrictions 5340-01-454-3567
5340-01-454-3567 is a Angle Bracket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-454-3567
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-454-3567
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXKZ
Approved Sources 5340-01-454-3567
- Part Number
- Manufacturer
- Status
- 10101450-005
- Manufacturer
- 7U702 - Ophir Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-454-3567
- Characteristic
- Specifications
- FIIG
- Specifications
- A042A0
- Material [MATT]
- Aluminum Alloy 6063
- Material Document And Classification [MDCL]
- Qq-A-200/9 Fed Spec Single Material Response
- Style Designator [STYL]
- Angle
- First Leg Length [ADLK]
- 1.1500 Inches Nominal
- Second Leg Length [ADLL]
- 2.5000 Inches Nominal
- First Leg Thickness [AHPW]
- 0.1000 Inches Nominal
- Second Leg Thickness [AHPX]
- 0.1000 Inches Nominal
- First Leg Angle [CSSQ]
- 90.0 Degrees Nominal
- First Leg Style [AJZU]
- Chamfered Ends
- First Leg Width [AHQN]
- 1.5000 Inches Nominal
- First Leg End Width [AHQQ]
- 1.3000 Inches Nominal
- Second Leg Width [AHLF]
- 0.5600 Inches Nominal
- Second Leg End Width [AHLH]
- 0.5300 Inches Nominal
- First Leg Chamfer Angle [CWPD]
- 10.0 Degrees Nominal
- Second Leg Chamfer Angle [CWPG]
- 10.0 Degrees Nominal
- First Leg Hole Diameter [AHLK]
- 0.1710 Inches Nominal
- First Leg Distance Between Hole Centers Along Length [AHQX]
- 0.5100 Inches Nominal
- Second Leg Distance From Edge To Hole Center Along Width [AHLV]
- 0.3000 Inches Nominal
- Second Leg Distance From Edge To Hole Center Along Length [AHLW]
- 0.3500 Inches Nominal
- Second Leg Slot Width [AHMA]
- 0.2130 Inches Nominal
- Second Leg Relationship To First Leg [CSSP]
- Not Identical
- Second Leg Style [AKBU]
- Chamfered Ends

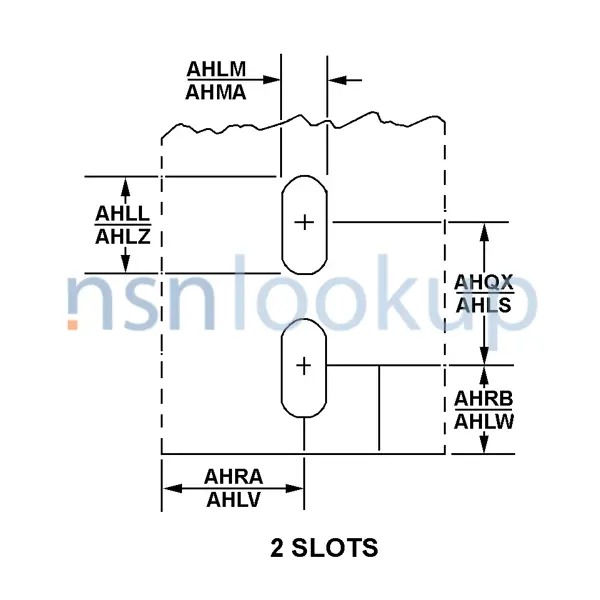

- Second Leg Hole Arrangement Style [AKCU]
- 2 Slots
