5340-01-450-3218
Rigid Caster
5340014503218 014503218 656A-3/4 SS ST9M402-1
A caster designed to maintain the rotation of the wheel(s) or spherical constructed item in one plane. View more Rigid Caster
November 2023
7
Marketplace 5340-01-450-3218
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-450-3218 1+ Documents (More...)
(Identification) 1/3 NSN 5340-01-450-3218 (Identification) 2/3 NSN 5340-01-450-3218 (Identification
RQST NE Updated Every Day 5340-01-450-3218 RQST Updated Every Day 5340-01-450-3218 RQST NE Related Documents
Restrictions 5340-01-450-3218
5340-01-450-3218 is a Rigid Caster that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-450-3218
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-450-3218
- National Security Agency (DGX1)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5340-01-450-3218
- Part Number
- Manufacturer
- Status
- 656A-3/4 SS
- Manufacturer
- 8V043 - Acme Caster Mfg Enterprises Inc (Active)
- Primary Buy
- Primary Buy
- ST9M402-1
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- 656A-3/4 SS
- 21760 - Schatz Bearing Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-450-3218
- Characteristic
- Specifications
- FIIG
- Specifications
- A25600
- Material And Location [ANNQ]
- Steel, Qq-S-766, 300 Series Overall
- Surface Treatment And Location [ANNR]
- Passivated Overall
- Safe Operating Load Rating [ALSC]
- 100.0 Pounds Nominal
- Style Designator [STYL]
- Rigid
- Wheel Diameter [BCDX]
- 0.688 Inches Nominal
- Effective Height [BRHQ]
- 0.750 Inches Nominal
- Stem Style [ALYX]
- Countersunk Plain
- Stem Length [ALZD]
- 0.156 Inches Nominal
- Stem Diameter [ALZE]
- 0.734 Inches Nominal

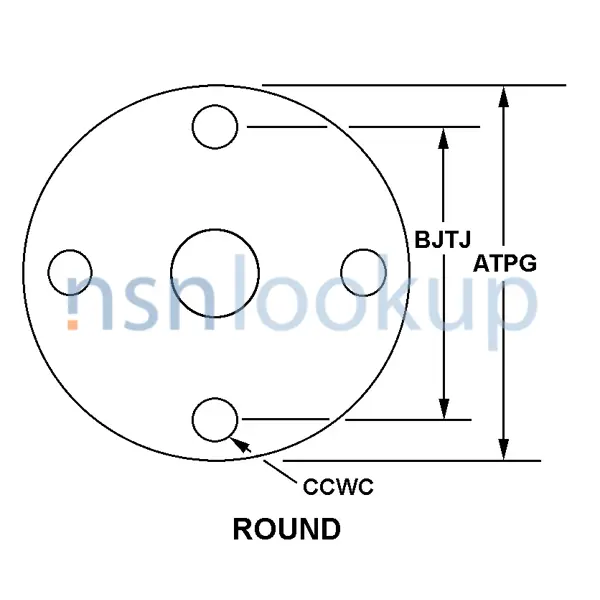

- Plate Style [CBZT]
- Round
- Plate Diameter [ATPG]
- 1.312 Inches Nominal
- Caster Plate Mounting Hole Diameter [CCWC]
- 0.116 Inches Nominal
- Wheel Bearing Type [CBZZ]
- Ball
- Wheel Quantity [AGDH]
- 1
- Wheel Type [AYMR]
- Solid
- Criticality Code Justification [CRTL]
- Agav
- End Item Identification [AGAV]
- F-15
Weapon Systems (WSDC) 5340-01-450-3218
DLA Procurement Analysis 5340-01-450-3218
- Last Stock Position:
- 184 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-450-3218
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Dec 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 5340-01-450-3218
Freight Information 5340-01-450-3218
5340-01-450-3218 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-450-3218 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-450-3218 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-450-3218 is not classified as a special type of cargo when transported by water. 5340-01-450-3218 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-450-3218
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-450-3218 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5EK15V0827
- 13 Nov 2014
- Subscribe
- 139
- Subscribe
- Subscribe
- Subscribe
- SPE5EK15V0066
- 03 Oct 2014
- Subscribe
- 58
- Subscribe
- Subscribe
- Subscribe
- SPE5EK14V5928
- 29 Sep 2014
- Subscribe
- 71
- Subscribe
- Subscribe
- Subscribe
- SPE5E014V1977
- 31 Jul 2014
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE5EK14V3957
- 19 Jun 2014
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE5EK14V3865
- 13 Jun 2014
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-01-450-3218 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
