5340-01-447-6270
Bridge Clamp
5340014476270 014476270 A53577-1
A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal. View more Bridge Clamp
January 2023
6
Marketplace 5340-01-447-6270
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-447-6270 3+ Documents (More...)
5340-01-447-6270 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-447-6270
Bridge Clamp 5340014476270014476270,A53577-1 A53577-1 A clamp designed to straddle a cover, door or
Bridge Clamp 5340014476270 014476270,A53577-1 5340-01-447-6270 2+ Documents ( More... ) https//
www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-447-6270 /ca 4730-21-668-2083 Pipe Elbow 4730216682083216682083
Restrictions 5340-01-447-6270
5340-01-447-6270 is a Bridge Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-447-6270
- Taiwan, Province of China (YE01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5340-01-447-6270
- Part Number
- Manufacturer
- Status
- A53577-1
- Manufacturer
- 94697 - Moog Inc (Active)
- Primary Buy
- Primary Buy

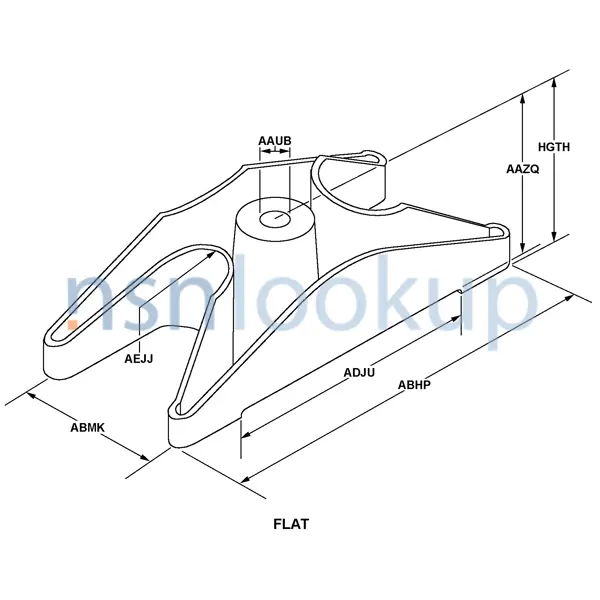

Datasheet 5340-01-447-6270
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- End Item Identification [AGAV]
- Pacer Dawn
- Height [HGTH]
- 0.200 Inches Nominal
- Hole Diameter [AAUB]
- 0.256 Inches Minimum And 0.260 Inches Maximum
- Material [MATT]
- Steel Overall
- Material Document And Classification [MDCL]
- Ams 5659 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Overall Width [ABMK]
- 1.200 Inches Nominal
- Special Features [FEAT]
- Contains 2 Mounting Holes; Original Name On Drawing Is Clamp,Union
- Style Designator [STYL]
- Flat
- Surface Treatment [SFTT]
- Passivate Overall
Similar Supply Items to 5340-01-447-6270
Freight Information 5340-01-447-6270
5340-01-447-6270 has freight characteristics managed by the Department of Energy (DOE).. 5340-01-447-6270 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
