5340-01-435-9531
Rod End Locking Retainer
5340014359531 014359531 20816
A rigid metallic item specifically designed to be installed in the grooves of a rod end. When installed it prevents rotation of a threaded fastener, such as a jam nut and the like, and must have facilities for a lock wire. View more Rod End Locking Retainer
January 2023
6
Marketplace 5340-01-435-9531
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-435-9531 5+ Documents (More...)
/fsg-53/fsc-5340/us 5340-01-435-9531 Rod End Locking Retainer 5340014359531,20816 20816 A rigid metallic
Updated Every Day 5340-01-435-9531 RQST NE Updated Every Day 5340-01-435-9531 RQST Updated Every Day
20816 LIGHT SHIELD,DENTAL RQST NS Request Quotation Subscribe to View Vendor Details... 20816 LIGHT
SHIELD 20816-01 1 RNVC 2 DAC C 20816 54905 - Amerex Corporation (Active) Primary Buy RNCC 3 RNVC 2 MEDALS
LIGHT SHIELD,DENTAL RQST NS Request Quotation Subscribe to View Vendor Details... 20816 LIGHT SHIELD
LIGHT SHIELD,DENTAL RQST NS Request Quotation Subscribe to View Vendor Details... 20816 LIGHT LIGHT
20816 LIGHT SHIELD,DENTAL RQST NS Request Quotation Subscribe to View Vendor Details... 20816 LIGHT
LIGHT SHIELD,DENTAL RQST NS Request Quotation Subscribe to View Vendor Details... 20816 LIGHT SHIELD
//www.nsnlookup.com /fsg-53/fsc-5330/fr 5330-14-437-7612 Gasket 5330144377612 144377612,9350170680 20816
a day Upgrade your Account Upgrade 5340-01-435-9531Rod End Locking Retainer5340014359531 014359531 20816
Restrictions 5340-01-435-9531
5340-01-435-9531 is a Rod End Locking Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-435-9531
- Taiwan, Province of China (YE01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5340-01-435-9531
- Part Number
- Manufacturer
- Status
- 20816
- Manufacturer
- 61898 - Triumph Actuation Systems - (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-435-9531
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-A
- Flange Height [AHGD]
- 0.144 Inches Minimum And 0.151 Inches Maximum
- Flange Thickness [ABKU]
- 0.035 Inches Minimum And 0.045 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-6758 Mil Spec Single Material Response
- Material [MATT]
- Steel Comp 4130
- End Item Identification [AGAV]
- Pacer Dawn
- Inside Width [ADJT]
- 0.188 Inches Nominal
- Overall Height [ABKW]
- 0.178 Inches Nominal
- Special Features [FEAT]
- Original Dwg Name Lock, Rod End; Distance From Hole Center To End 0.058 To 0.062 In.; Item Goes On Main Landing Gear Retract Actuator,P/N 20600-9, W/Nha P/N Being 2010010, Fscm 17576
- Width [ABGL]
- 0.115 Inches Minimum And 0.125 Inches Maximum
- Wire Hole Diameter [CRZZ]
- 0.047 Inches Minimum And 0.056 Inches Maximum

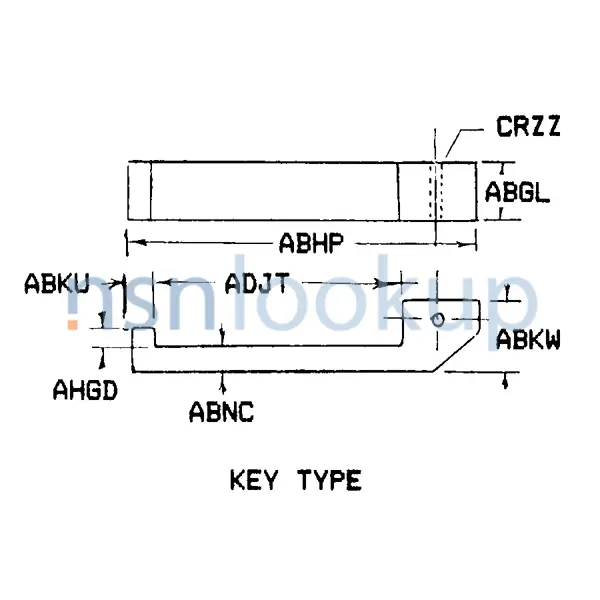

- Style Designator [STYL]
- Key Type
- Surface Treatment [SFTT]
- Cadmium
