5340-01-418-2317
Nut And Bolt Locking Plate
5340014182317 014182317 803-2177518-10XX-30
A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT. View more Nut And Bolt Locking Plate
May 2023
2
Marketplace 5340-01-418-2317
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-418-2317 1+ Documents (More...)
Updated Every Day 5340-01-418-2317 RQST NE Related Documents 5340-01-418-2317 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-418-2317 Nut And Bolt Locking Plate 5340014182317
Restrictions 5340-01-418-2317
5340-01-418-2317 is a Nut And Bolt Locking Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-418-2317
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDJBHX
Approved Sources 5340-01-418-2317
- Part Number
- Manufacturer
- Status
- 803-2177518-10XX-30
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-418-2317
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-C

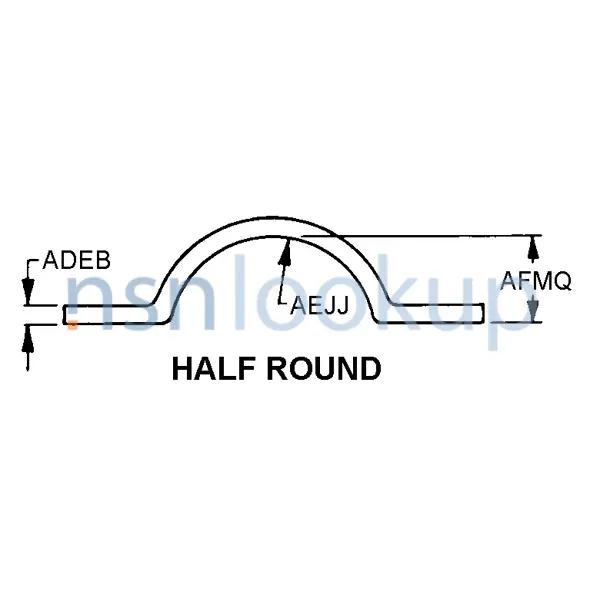

- Cross-Sectional Shape Style [AAGR]
- Half Round
- Distance Between Mounting Hole Centers [AFQM]
- 5.406 Inches Nominal
- Material [MATT]
- Steel Uns J03002
- Mounting Hole Quantity [ABTJ]
- 2
- Mounting Hole Diameter [ABTB]
- 0.781 Inches Nominal
- Inside Height [AFMQ]
- 1.125 Inches Nominal
- Inside Radius [AEJJ]
- 1.755 Inches Nominal
- Material Document And Classification [MDCL]
- Astm A216, Grade Wcb Assn Std Single Material Response
- Plate Thickness [ADEB]
- 0.906 Inches Nominal
- Width [ABGL]
- 1.656 Inches Nominal
- Style Designator [STYL]
- Straight
DLA Procurement Analysis 5340-01-418-2317
Management Data 5340-01-418-2317
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-418-2317
Freight Information 5340-01-418-2317
5340-01-418-2317 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5340-01-418-2317 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5340-01-418-2317 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5340-01-418-2317 is not classified as a special type of cargo when transported by water. 5340-01-418-2317 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-418-2317 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
