5340-01-413-4579
Rod End Clevis
5340014134579 014134579 803-6397420-69 803-6397420
A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION. View more Rod End Clevis
November 2023
1
Marketplace 5340-01-413-4579
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-413-4579 5+ Documents (More...)
/fsg-53/fsc-5340/us
BUY NE FedMall Updated Every Day 5340-01-413-4579 RQST NE Updated Every Day 5340-01-413-4579 RQST
Updated Every Day 5340-01-413-4579 RQST NE Related Documents 5340-01-413-4579 5+ Documents ( More...
Rod End Clevis 5340014134579 014134579 Upgrade your Account Upgrade 5340-01-413-4579Rod End Clevis5340014134579
014134579 803-6397420-69 803-6397420 A 3010/us 3010-01-391-3983 Rigid Shaft Coupling 3010013913983 013913983
5 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-413-4579 Rod End Clevis 5340014134579 014134579
PIECE 48 803-6397420 A https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-413-4579 Rod End Clevis
-48 803-6397420 PIECE 48 803-6397420 A device for connecting the ends of two shafts to produce in effect
PIECE 86 803-6397420 Managed by United States NSN Created on 9 Jun 1994 Data Last Changed Rigid Shaft
Rod End Clevis 5340014134579 014134579 5340014134579014134579 Rigid Shaft Coupling 3010013913983013913983
-48 803-6397420 PIECE 86 803-6397420 Managed by PIECE 86 803-6397420 Managed PIECE 31 6397420 A straight
Restrictions 5340-01-413-4579
5340-01-413-4579 is a Rod End Clevis that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-413-4579
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
Approved Sources 5340-01-413-4579
- Part Number
- Manufacturer
- Status
- 803-6397420-69
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 803-6397420
- 53711 - Naval Sea Systems Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5340-01-413-4579

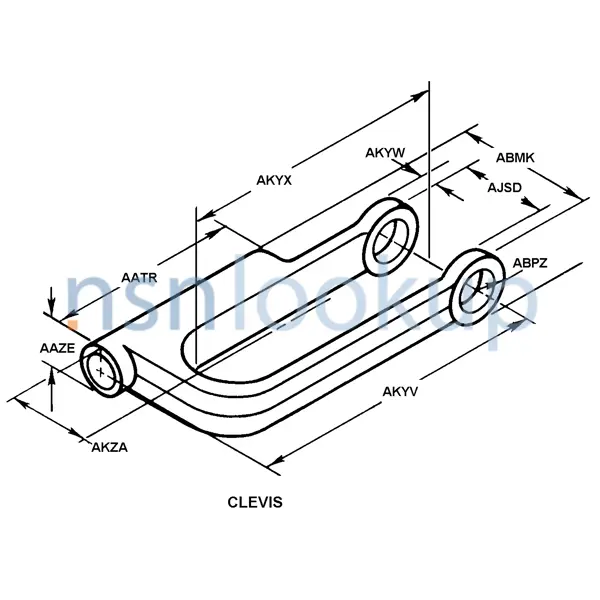

- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0
- Distance From Pivot Pinhole Center To Rod Connection End [AKYV]
- 4.440 Inches Nominal
- End Radius [ABPZ]
- 0.562 Inches Nominal
- Fork Span Width [AJSD]
- 1.125 Inches Minimum And 1.130 Inches Maximum
- Fork Arm Thickness [AKYW]
- 2.500 Nominal Inches
- Hole Shape [BCLP]
- Round
- Material [MATT]
- Steel Comp 630 Overall
- Material Document And Classification [MDCL]
- Astm A564 Assn Std Single Material Response Overall
- Securing Pin Hole Diameter [AKYE]
- 0.625 Inches Minimum And 0.628 Inches Maximum
- Shank Length [AATR]
- 2.000 Inches Nominal
- Shank Diameter [AAZE]
- 1.750 Inches Nominal
- Overall Width [ABMK]
- 2.750 Inches Nominal
- Style Designator [STYL]
- Clevis
