5340-01-412-2751

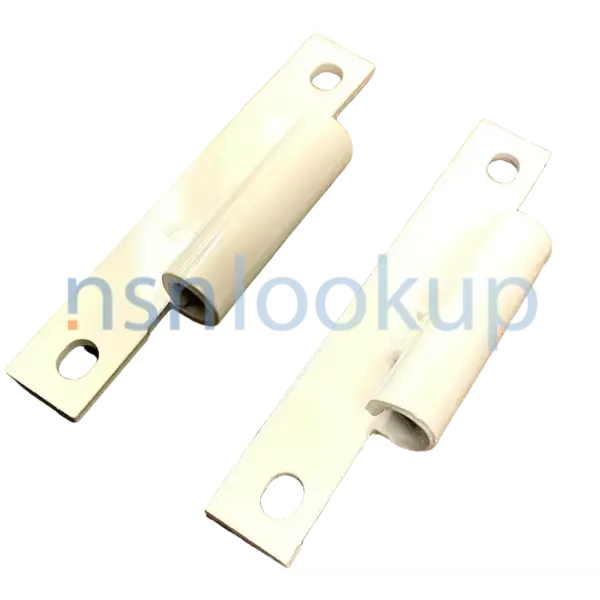

Butt Hinge Leaf
5340014122751 014122751 12338650-2
An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin. View more Butt Hinge Leaf
October 2025
3
Marketplace 5340-01-412-2751
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-412-2751 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-412-2751 RQST NE Updated Every Day 5340-01-412-2751 RQST
Updated Every Day 5340-01-412-2751 RQST NE Related Documents 5340-01-412-2751 2+ Documents ( More...
Butt Hinge Leaf 5340014122751 014122751 for $1 a day Upgrade your Account Upgrade 5340-01-412-2751Butt
Hinge Leaf5340014122751 014122751 12338650 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-412-
Restrictions 5340-01-412-2751
5340-01-412-2751 is a Butt Hinge Leaf that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-412-2751
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
Approved Sources 5340-01-412-2751
- Part Number
- Manufacturer
- Status
- 12338650-2
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-412-2751
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Hinge Pin [AKEW]
- Not Included
- Material Thickness [ABPX]
- 0.1196 Inches Nominal
- Knuckle Inside Diameter [AKFS]
- 0.3170 Inches Minimum And 0.3270 Inches Maximum
- Knuckle Length [AKFH]
- 2.0000 Inches Nominal
- Knuckle Quantity [AKEX]
- 1
- Knuckle Type [AKNB]
- Friction
- Material And Location [ANNQ]
- Steel Overall
- Reversible Feature [AJNC]
- Not Included
- Overall Length [ABHP]
- 4.5400 Inches Nominal
- Performance Type [AGLD]
- Not Rated
- Pin Center To Body Edge Distance [AKFK]
- 0.9200 Inches Nominal
- Special Features [FEAT]
- Rthe Only Difference Between Part Numbers Of 12338650 Is The Color Of The Part; There Are Two Slots With 0.2810 In By 0.3800 In. And 0.42000 In. From Length To Center Of Slot And 0.4200 In. From Width To Center Of Slot
- Style Designator [STYL]
- Butt Parrallel Holes End Knuckles
- Surface Treatment And Location [ANNR]
- Zinc, Astm B633 Overall
