5340-01-408-3378
Extension Drawer Slide
5340014083378 014083378 05236-1504654-L 841369-25
An item designed to be installed in a cabinet or rack to provide support and a sliding or rolling surface for a drawer, or the like. A portion of the slide extends with the drawer to provide support when the drawer is in the open position. View more Extension Drawer Slide
May 2023
1
Marketplace 5340-01-408-3378
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-408-3378 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-408-3378 RQST NE Updated Every Day 5340-01-408-3378 RQST
Updated Every Day 5340-01-408-3378 RQST NE Related Documents 5340-01-408-3378 3+ Documents ( More...
Extension Drawer Slide 5340014083378 Upgrade your Account Upgrade 5340-01-408-3378Extension Drawer
Slide5340014083378 014083378 05236-1504654 AMC 0 AMSC 0 IMC Z IMCACTY PA Approved Sources 5340-01-408
Extension Drawer Slide 5340014083378 Upgrade your Account Upgrade 5340-01-408-3378Extension Drawer
Slide5340014083378 014083378 05236-1504654-L RQST NE Updated Every Day 5340-01-408-3378 RQST https//
Restrictions 5340-01-408-3378
5340-01-408-3378 is a Extension Drawer Slide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-408-3378
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-408-3378
- National Security Agency (DGX1)
- Effective Date:
- 1 Mar 2014
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC10
Approved Sources 5340-01-408-3378
- Part Number
- Manufacturer
- Status
- 05236-1504654-L
- Manufacturer
- 05236 - Jonathan Engineered Solutions Corp. (Active)
- Primary Buy
- Primary Buy
- 841369-25
- 06481 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- 841369-25
- 13973 - Litton Systems Inc. Div Navigation (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-408-3378
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Closed Length [CBRJ]
- 16.380 Inches Nominal
- Extended Length [ATEM]
- 36.380 Inches Nominal
- Height [CWWG]
- 0.460 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-200/2 T6 Fed Spec 1St Material Response Slide Or Qq-A-200/3 T3511 Fed Spec 2Nd Material Response Slide Or Qq-A-200/8 T6 Fed Spec 3Rd Material Response Slide Or Qq-A-200/11 T6 Fed Spec 4Th Material Response Slide
- Material [MATT]
- Aluminum Alloy 2014 Slide Or Aluminum Alloy 2024 Slide Or Aluminum Alloy 6061 Slide Or Aluminum Alloy 7075 Slide
- Mounting Facility Diameter [CLMQ]
- 0.199 Inches Nominal
- Mounting Facility Quantity [AKPV]
- 10
- Mounting Method [AXGY]
- Unthreaded Hole
- Side For Which Designed [BWJF]
- Left Hand
- Width [ABGL]
- 3.500 Inches Nominal

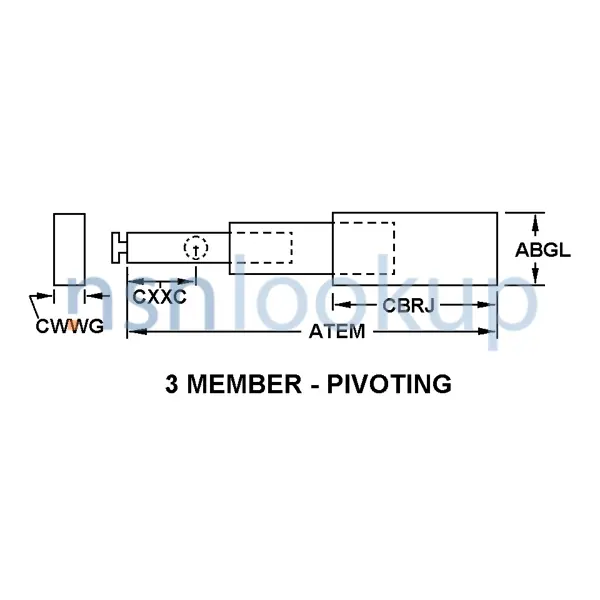

- Style Designator [STYL]
- 3 Member - Pivoting
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625, Ty 2, Cl 1 Mil Spec Single Treatment Response Slide
- Surface Treatment [SFTT]
- Anodize Slide
DLA Procurement Analysis 5340-01-408-3378
Management Data 5340-01-408-3378
Similar Supply Items to 5340-01-408-3378
Freight Information 5340-01-408-3378
5340-01-408-3378 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 096775. A Sub NMFC of X. It has a NMFC Description of SLIDES DRAWER/SHELF/TABLE STEEL. 5340-01-408-3378 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 44620 which rates the freight between FCL and LCL. 5340-01-408-3378 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-408-3378 is not classified as a special type of cargo when transported by water. 5340-01-408-3378 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-408-3378 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
