5340-01-395-3902

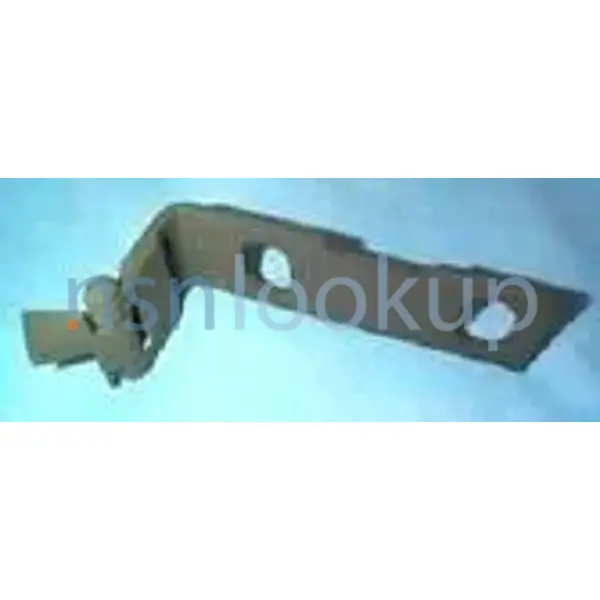

Butt Hinge
5340013953902 013953902 39-2475-001
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
May 2023
2
Marketplace 5340-01-395-3902
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-395-3902 5+ Documents (More...)
5340-01-395-3902 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-395-3902
RQST NE Updated Every Day 5340-01-395-3902 RQST Updated Every Day 5340-01-395-3902 RQST NE Restrictions
Restrictions 5340-01-395-3902
5340-01-395-3902 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-395-3902
- Canada (ZC01)
- Effective Date:
- 1 Aug 1994
Approved Sources 5340-01-395-3902
- Part Number
- Manufacturer
- Status
- 39-2475-001
- Manufacturer
- 48ZY0 - Mas Components & Coatings, Llc (Active)
- Primary Buy
- Primary Buy
- 39-2475-001
- 75324 - Kilgore Flares Company Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 39-2475-001
- 55180 - Alliant Defense Electronics Systems (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-395-3902
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- End Item Identification [AGAV]
- Chaff Dispensing Set
- Body Width [ADAT]
- 1.880 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.250 Inches Nominal
- Knuckle Type [AKNB]
- Bushing
- Material And Location [ANNQ]
- Aluminum Alloy, Qq-A-225/6, Alloy 2024, T351 Overall Or Aluminum Alloy, Qq-A-250/4 Overall
- Style Designator [STYL]
- Butt
- Surface Treatment And Location [ANNR]
- Anodized, Mil-A-8625, Type 2, Class 1 Overall
Similar Supply Items to 5340-01-395-3902
Freight Information 5340-01-395-3902
5340-01-395-3902 has freight characteristics managed by Canada.. 5340-01-395-3902 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
