5340-01-393-8500
Butt Hinge
5340013938500 013938500 12418630
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
November 2023
5
Marketplace 5340-01-393-8500
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-393-8500 1+ Documents (More...)
4 EA NS Request Quotation Updated Every Day 5340-01-393-8500 RQST NE Updated Every Day 5340-01-393-8500
RQST Updated Every Day 5340-01-393-8500 RQST NE Related Documents 5340-01-393-8500 1+ Documents ( More
Restrictions 5340-01-393-8500
5340-01-393-8500 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-393-8500
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-393-8500
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- France (ZF01)
- Effective Date:
- 1 Jun 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
Approved Sources 5340-01-393-8500
- Part Number
- Manufacturer
- Status
- 12418630
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12418630
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
- 12418630
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-393-8500
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100

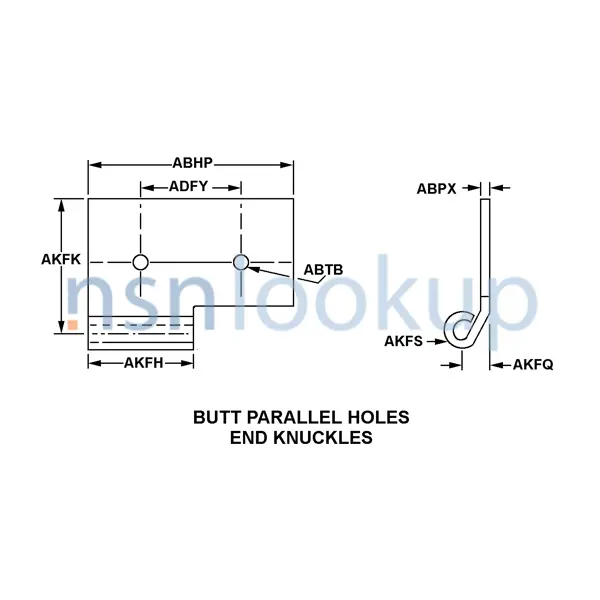

- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 38.1 Millimeters Nominal
- Material Thickness [ABPX]
- 2.28 Millimeters Nominal
- Mounting Hole Quantity [ABTJ]
- 2
- Mounting Hole Diameter [ABTB]
- 6.62 Millimeters Nominal
- Jamb Leaf Offset Distance [AKFQ]
- 2.3 Millimeters Minimum And 3.7 Millimeters Maximum
- Knuckle Inside Diameter [AKFS]
- 9.52 Millimeters Nominal
- Knuckle Length [AKFH]
- 63.5 Millimeters Nominal
- Knuckle Quantity [AKEX]
- 1
- Knuckle Type [AKNB]
- Friction
- Material And Location [ANNQ]
- Steel, Astm A580, Comp 302 Body Or Steel, Astm A580, Comp 304 Body
- Pin Removability [AKES]
- Removable
- Reversible Feature [AJNC]
- Not Included
- Rising Pin [AKET]
- Not Included
- Overall Length [ABHP]
- 63.5 Millimeters Nominal
- Performance Type [AGLD]
- Not Rated
- Pin Center To Body Edge Distance [AKFK]
- 42.1 Millimeters Nominal
- Style Designator [STYL]
- Butt Parrallel Holes End Knuckles
