5340-01-381-3836
Rod End Connector
5340013813836 013813836 12385212
An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION. View more Rod End Connector
November 2023
1
Marketplace 5340-01-381-3836
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-381-3836 1+ Documents (More...)
CONNECTOR,ROD END 100 EA NS Request Quotation Subscribe to View Vendor Details... 12385212 CONN
Updated Every 15 Minutes 5340-01-381-3836 BUY NE FedMall Updated Every Day 5340-01-381-3836 RQST NE
Restrictions 5340-01-381-3836
5340-01-381-3836 is a Rod End Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-381-3836
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
Approved Sources 5340-01-381-3836
- Part Number
- Manufacturer
- Status
- 12385212
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-381-3836
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0
- Distance From End To Hole Center [BFKT]
- 1.700 Inches Nominal
- Hole Shape [BCLP]
- Slotted
- Nominal Thread Size [CQJX]
- 0.626 Inches Shank
- Material [MATT]
- Steel Overall
- Material Document And Classification [MDCL]
- Astma576 Assn Std Single Material Response Overall Or Astma108 Comps 1018-1045 Assn Std Single Material Response Overall
- Shank Outside Diameter [AGGZ]
- 1.000 Inches Nominal
- Slot Length [ABGD]
- 1.460 Inches Nominal
- Slot Width [ABGC]
- 0.630 Inches Nominal
- Special Features [FEAT]
- Shank Is Retangular 0.500 In. By 1.000 In.
- Thread Series Designator [THSD]
- Unc Shank
- Tongue Thickness [AHHF]
- 0.500 Inches Nominal
- Tongue Width [AHHE]
- 1.000 Inches Nominal

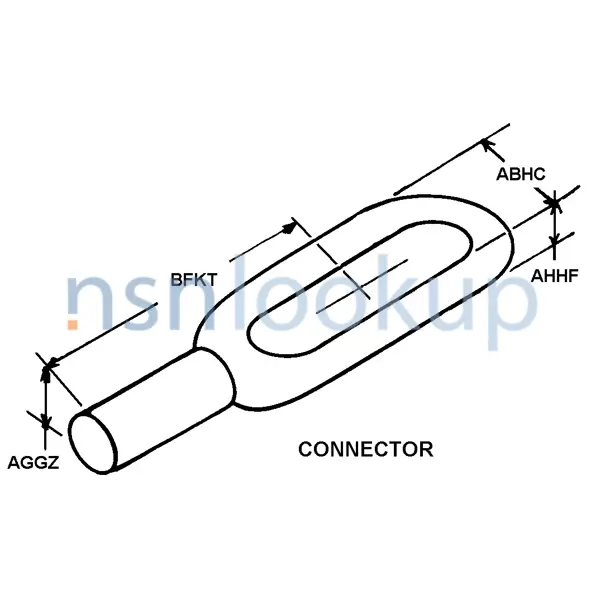

- Style Designator [STYL]
- Connector
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl3 Fed Spec 1St Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall Or Nickel Overall And Zinc Overall
- Thread Direction [AAJF]
- Right-Hand Shank
- Thread Class [AAJD]
- 2B Shank
- Thread Length [AASA]
- 0.825 Inches Minimum Shank
