5340-01-378-6567
Bridge Clamp
5340013786567 013786567 6532C357 1 6532C357-1
A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal. View more Bridge Clamp
November 2023
5
Marketplace 5340-01-378-6567
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-378-6567 1+ Documents (More...)
RQST NE Updated Every Day 5340-01-378-6567 RQST Updated Every Day 5340-01-378-6567 RQST NE Related Documents
5340-01-378-6567 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-378-6567
Restrictions 5340-01-378-6567
5340-01-378-6567 is a Bridge Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-378-6567
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Australia (ZA01)
- Effective Date:
- 1 Jan 1996
Approved Sources 5340-01-378-6567
- Part Number
- Manufacturer
- Status
- 6532C357-1
- Manufacturer
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Primary Buy
- Primary Buy
- 6532C357-1
- 36334 - Indal Technologies Inc (Active)
- Secondary Buy
- Secondary Buy
- 6532C357 1
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5340-01-378-6567
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700

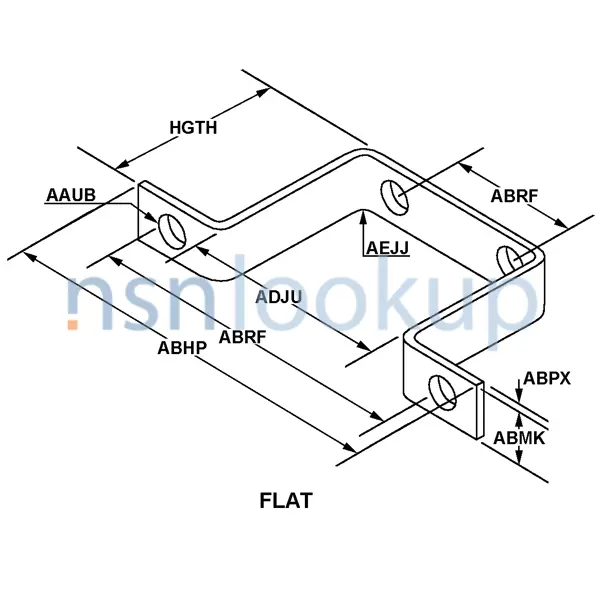

- Center To Center Distance Between Holes [ABRF]
- 3.870 Inches Nominal
- Height [HGTH]
- 1.090 Inches Nominal
- Hole Diameter [AAUB]
- 0.295 Inches Nominal
- Material Thickness [ABPX]
- 0.500 Inches Nominal
- Material [MATT]
- Steel Overall
- Inside Radius [AEJJ]
- 1.000 Inches Minimum And 1.015 Inches Maximum
- Material Document And Classification [MDCL]
- Astma36 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 4.500 Inches Nominal
- Style Designator [STYL]
- Flat
Weapon Systems (WSDC) 5340-01-378-6567
DLA Procurement Analysis 5340-01-378-6567
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-378-6567
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-01-378-6567
Freight Information 5340-01-378-6567
5340-01-378-6567 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-378-6567 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-378-6567 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-378-6567 is not classified as a special type of cargo when transported by water. 5340-01-378-6567 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-378-6567
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-378-6567 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
