5340-01-374-1867
Access Cover
5340013741867 013741867 SM-C-850319
A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above. View more Access Cover
May 2023
4
Marketplace 5340-01-374-1867
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-374-1867 3+ Documents (More...)
United States (US) 4. 5340-01-374-1867 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5340-01-374-1867
Access Cover 5340013741867 013741867 for $1 a day Upgrade your Account Upgrade 5340-01-374-1867Access
Cover5340013741867 013741867 SM-C-850319 Hexagon Plain Nut 5310151893916151893916 Documents 5310-15-
SM-C-850319 Couvercle Du Boitie 2920142110203142110203 JavaScript in your web browser . 2920-14-211-
Restrictions 5340-01-374-1867
5340-01-374-1867 is a Access Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-374-1867
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-374-1867
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
- Greece (ZU01)
- Effective Date:
- 1 May 2006
Approved Sources 5340-01-374-1867
- Part Number
- Manufacturer
- Status
- SM-C-850319
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-374-1867
- Characteristic
- Specifications
- FIIG
- Specifications
- A531C0
- Peripheral Shape Style [ABMW]
- Round, No Holes
- Outside Diameter [ABKV]
- 3.830 Inches Nominal

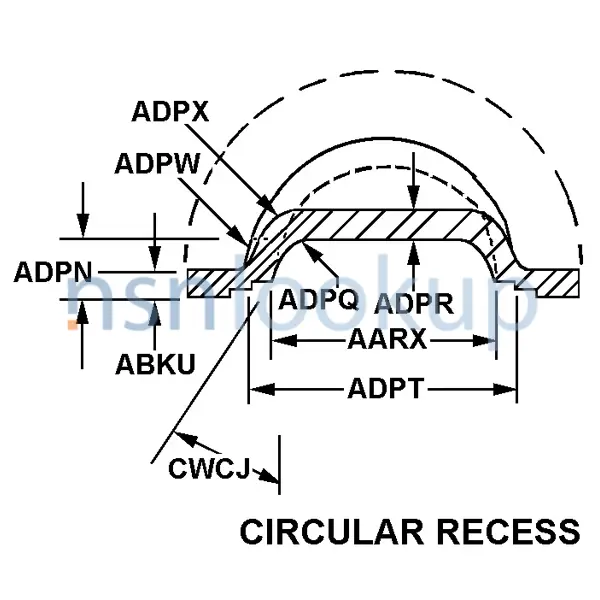

- Cross-Sectional Shape Style [AAGR]
- Circular Recess
- Inside Diameter [AARX]
- 3.310 Inches Nominal
- Flange Thickness [ABKU]
- 0.250 Inches Nominal
- First Recess Inside Height [ADPN]
- 0.250 Inches Nominal
- Body Thickness [ADPR]
- 0.020 Inches Nominal
- First Recess Diameter [ADPT]
- 3.450 Inches Nominal
- Inside Angle [CWCJ]
- 45.0 Degrees Nominal
- Material [MATT]
- Rubber
- Material Document And Classification [MDCL]
- 417 Mil Std Single Material Response
- Securing Device Type [ADQB]
- Special
DLA Procurement Analysis 5340-01-374-1867
Management Data 5340-01-374-1867
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5340-01-374-1867
Freight Information 5340-01-374-1867
5340-01-374-1867 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 024850. A Sub NMFC of X. It has a NMFC Description of BOAT HATCH COVER. 5340-01-374-1867 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 11640 which rates the freight between FCL and LCL. 5340-01-374-1867 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-374-1867 is not classified as a special type of cargo when transported by water. 5340-01-374-1867 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-374-1867
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-374-1867 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
