5340-01-360-4866
Access Door Hinge
5340013604866 013604866 5494849
A one piece rigid item designed to rotate an access door into an open or closed position. It is drilled at one end to accommodate a shaft which serves as a pivot or axis. The other end has a curved base conforming to the contour of the access door. The base has mounting holes or other mounting facilities. Excludes LEAF,BUTT HINGE. View more Access Door Hinge
August 2023
6
Marketplace 5340-01-360-4866
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-360-4866 1+ Documents (More...)
RQST NE Updated Every Day 5340-01-360-4866 RQST Updated Every Day 5340-01-360-4866 RQST NE Related Documents
5340-01-360-4866 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-360-4866
Restrictions 5340-01-360-4866
5340-01-360-4866 is a Access Door Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-360-4866
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Germany (ZG01)
- Effective Date:
- 1 Jan 2007
Approved Sources 5340-01-360-4866
- Part Number
- Manufacturer
- Status
- 5494849
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 5494849
- 15090 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 5494849
- C7399 - Ram-System Gmbh (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-360-4866
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100

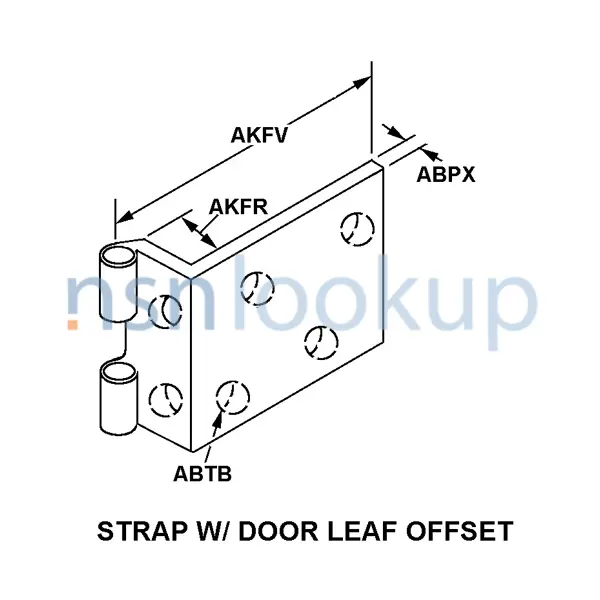

- Door Leaf Offset Distance [AKFR]
- 20.1 Millimeters Nominal
- Developed Distance From Pin Center To Offset Door Leaf Edge [AKFV]
- 91.5 Millimeters Nominal
- Hinge Pin [AKEW]
- Not Included
- Material Thickness [ABPX]
- 10.0 Millimeters Nominal
- Mounting Hole Diameter [ABTB]
- 6.4 Millimeters Nominal
- Mounting Hole Quantity [ABTJ]
- 3
- Knuckle Quantity [AKEX]
- 2 Or 3
- Material And Location [ANNQ]
- Steel Overall
- Reversible Feature [AJNC]
- Not Included
- Style Designator [STYL]
- Strap W/Door Leaf Offset
- Surface Treatment And Location [ANNR]
- Chromate, Mil-C-5541, Class 1A Overall
