5340-01-353-8182
Snap Hook
5340013538182 013538182 NAS1282 NAS1282C16
A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices. View more Snap Hook
November 2023
11
Marketplace 5340-01-353-8182
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-353-8182 5+ Documents (More...)
NAS1282C16 SNAP HOOK RQST NS Request Quotation FedMall Updated Every 15 Minutes 5340-01-353-8182 BUY
NE FedMall Updated Every Day 5340-01-353-8182 RQST NE Updated Every Day 5340-01-353-8182 RQST Updated
Snap Hook 5340012656274012656274,NAS1282 Upgrade for $1 a day Upgrade your Account Upgrade 5340 -01-
Snap Hook 5340012656274012656274,NAS1282 Upgrade for $1 a day Upgrade your Account Upgrade 5340 -01-
/fsg-53/fsc-5340/us 5340-01-353-8182 Snap Hook 5340013538182 013538182,NAS1282 Upgrade for $1 a day
Upgrade your Account Upgrade 5340-01-353-8182Snap Hook5340013538182 013538182 NAS1282 Snap Hook 5340012656274012656274
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-938-5462 Snap Hook 5340009385462009385462,NAS1282
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-938-5462 Snap Hook 5340009385462009385462,NAS1282
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-781-3915 Snap Hook 5340007813915007813915,NAS1282
Snap Hook 5340013538182 013538182,NAS1282 Upgrade for $1 a day Upgrade your Account Upgrade 5340
Restrictions 5340-01-353-8182
5340-01-353-8182 is a Snap Hook that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-353-8182
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5340-01-353-8182
- Part Number
- Manufacturer
- Status
- NAS1282
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- NAS1282C16
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-353-8182
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-H

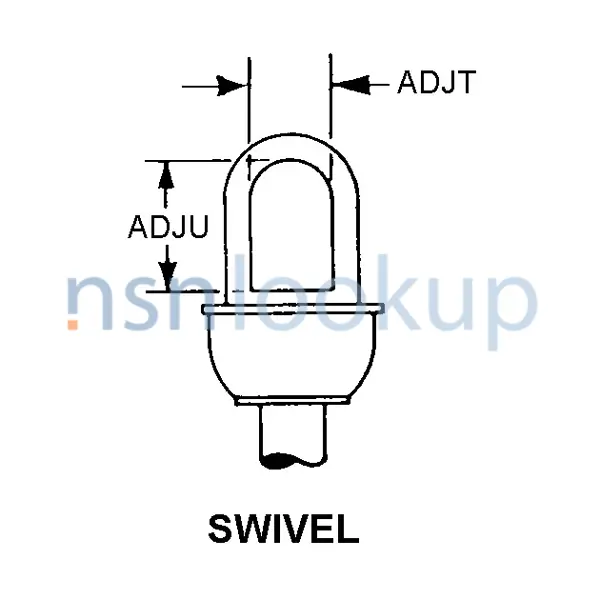

- End Connection Style [AJFX]
- Swivel
- Connection End Material [BWQQ]
- Iron, Malleable
- Design Type [APGF]
- Swivel
- Hook Material [BQQG]
- Iron, Malleable
- Hook Style Designator [BYCB]
- Sliding Bolt
- Inside Length [ADJU]
- 1.000 Inches Nominal
- Inside Width [ADJT]
- 1.000 Inches Nominal
- Rubber Covered Feature [BWQR]
- Not Included
- Overall Length [ABHP]
- 4.250 Inches Nominal
- Unattached Ring [BWQS]
- Not Included
- Specification/Standard Data [ZZZK]
- 80205-Nas1282 Professional/Industrial Association Standard
Weapon Systems (WSDC) 5340-01-353-8182
DLA Procurement Analysis 5340-01-353-8182
- Last Stock Position:
- 71 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-353-8182
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5340-01-353-8182
Freight Information 5340-01-353-8182
5340-01-353-8182 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-353-8182 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-353-8182 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-353-8182 is not classified as a special type of cargo when transported by water. 5340-01-353-8182 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-353-8182
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5340-01-353-8182 2 Records
Contracting Technical Data File (CTDF) 5340-01-353-8182 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
