5340-01-351-9495
Grooved Clamp Coupling Ferrule
5340013519495 013519495 NK170004-0450 2903CB450GC GF530A-M450GC
A flanged, flared or beaded hollow cylindrical metallic item designed to be affixed to the end of a tube, pipe duct or the like. It is used to mate with the groove of a COUPLING, CLAMP, GROOVED to create a fluid tight joint and/or connection. See also FERRULE, BRAZING, TUBE FITTING. View more Grooved Clamp Coupling Ferrule
May 2023
1
Marketplace 5340-01-351-9495
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-351-9495 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-351-9495 RQST NE Updated Every Day 5340-01-351-9495 RQST
Updated Every Day 5340-01-351-9495 RQST NE Related Documents 5340-01-351-9495 1+ Documents ( More...
Restrictions 5340-01-351-9495
5340-01-351-9495 is a Grooved Clamp Coupling Ferrule that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-351-9495
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 5340-01-351-9495
- Part Number
- Manufacturer
- Status
- NK170004-0450
- Manufacturer
- 00624 - Eaton Aeroquip Llc (Active)
- Primary Buy
- Primary Buy
- 2903CB450GC
- 94581 - V I J Corp (Active)
- Secondary Buy
- Secondary Buy
- GF530A-M450GC
- 26512 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5340-01-351-9495
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400

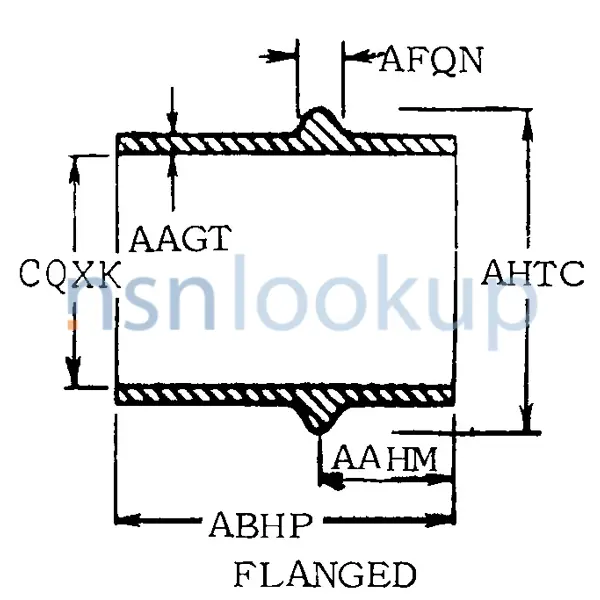

- Cross-Sectional Shape Style [AAGR]
- Flanged
- Ferrule Inside Diameter [CQXK]
- 4.505 Inches Minimum And 4.515 Inches Maximum
- First End Length From Bead Center To End [AAHM]
- 0.101 Inches Nominal
- Flange Length [AFQN]
- 0.039 Inches Nominal
- Flange Outside Diameter [AHTC]
- 5.010 Inches Nominal
- Material And Location [ANNQ]
- Nickel Alloy,Ams 5666,Overall
- Overall Length [ABHP]
- 0.840 Inches Nominal
- Special Features [FEAT]
- 4.310 In. Id On One End
- Wall Thickness [AAGT]
- 0.064 Inches Nominal
