5340-01-341-4305
Turnbuckle Body
5340013414305 013414305 1583M66P01
A metal loop, sleeve or solid item having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one and left hand screw threads on the other. It is a component of TURNBUCKLE. See also TIE ROD, TENSIONING, THREADED END. For items specifically designed for aviation, see TURNBUCKLE BODY, AVIATION. View more Turnbuckle Body
June 2023
3
Marketplace 5340-01-341-4305
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-341-4305 2+ Documents (More...)
United States (US) 4. 5340-01-341-4305 Marketplace Restrictions Approved Sources Datasheet Management
TURNBUCKLE BODY 66 EA NS Request Quotation Subscribe to View Vendor Details... 1583M66P01 TURNBUCKLE
Turnbuckle Body 5340013414305 013414305 Datasheet 5340-01-341-4305 CharacteristicSpecificationsFIIGA264A0End
Restrictions 5340-01-341-4305
5340-01-341-4305 is a Turnbuckle Body that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-341-4305
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Supplementary Collaborators:
- GTKE
Approved Sources 5340-01-341-4305
- Part Number
- Manufacturer
- Status
- 1583M66P01
- Manufacturer
- 07482 - General Electric Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-341-4305
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0
- End Item Identification [AGAV]
- 2840-01-329-7906 Front Frame Assy,F110-Ge-400 Engine
- Body Length [ADAQ]
- 4.890 Inches Minimum And 4.910 Inches Maximum

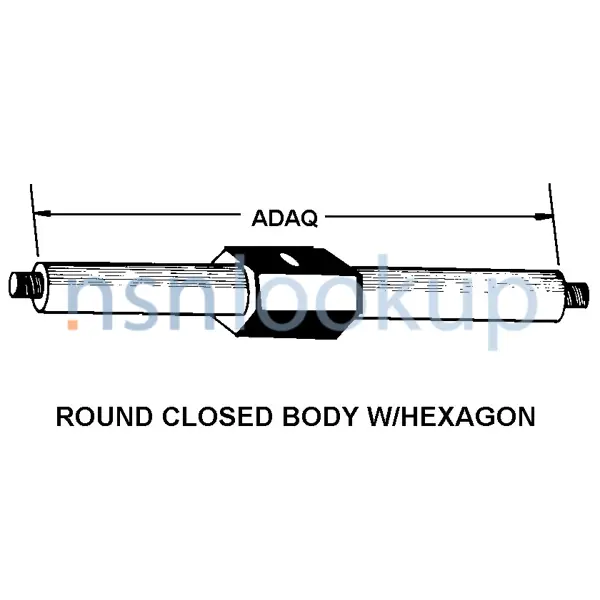

- Body Style [AAQL]
- Round Closed Body W/Hexagon
- Nominal Thread Size [CQJX]
- 0.312 Inches Body
- Material [MATT]
- Titanium Alloy Uns R56400 Overall
- Material Document And Classification [MDCL]
- Ams 4928 Assn Std Single Material Response Overall
- Thread Series Designator [THSD]
- Unjf Body
- Thread Class [AAJD]
- 3B Body
- Thread Pitch Diameters [AAJE]
- +0.3100/+0.3400 Inches Body
DLA Procurement Analysis 5340-01-341-4305
Management Data 5340-01-341-4305
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- XN
- Jet Engines (F110-GE-400)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5340-01-341-4305
Freight Information 5340-01-341-4305
5340-01-341-4305 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-341-4305 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-341-4305 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-341-4305 is not classified as a special type of cargo when transported by water. 5340-01-341-4305 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-341-4305
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-341-4305 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
