5340-01-282-2718
Recess Handle
5340012822718 012822718 1008514-1
A recessed item designed to be attached to another item such as a door, drawer, or window to provide access for the finger tips for opening, lifting, pulling, and the like. Includes sash lifts of the recessed type. View more Recess Handle
May 2023
4
Marketplace 5340-01-282-2718
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-282-2718 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-282-2718 RQST NE Updated Every Day 5340-01-282-2718 RQST
Updated Every Day 5340-01-282-2718 RQST NE Related Documents 5340-01-282-2718 1+ Documents ( More...
Restrictions 5340-01-282-2718
5340-01-282-2718 is a Recess Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-282-2718
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5340-01-282-2718
- Part Number
- Manufacturer
- Status
- 1008514-1
- Manufacturer
- 49956 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 1008514-1
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 1008514-1
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-282-2718
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0

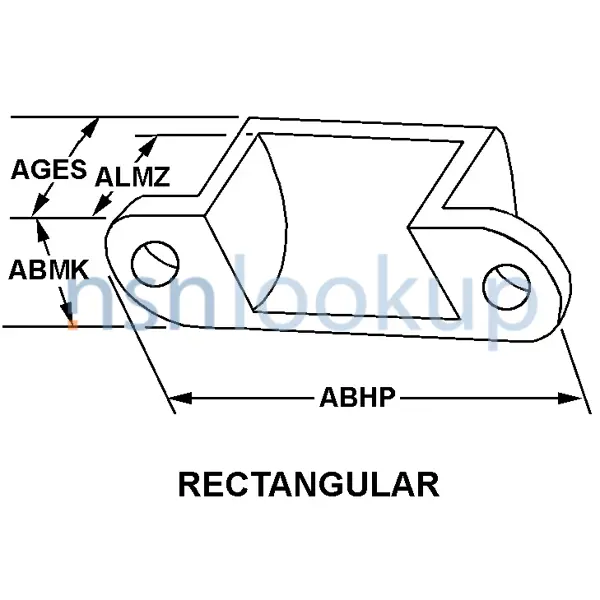

- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.875 Inches Nominal
- Handle Clearance [ALMZ]
- 0.810 Inches Nominal
- Handle Height [AGES]
- 1.060 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-250/11,T6 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Mounting Facility Diameter [CLMQ]
- 0.382 Inches Minimum And 0.391 Inches Maximum
- Mounting Facility Quantity [AKPV]
- 4
- Mounting Method [AXGY]
- Unthreaded Hole
- Overall Length [ABHP]
- 5.880 Inches Nominal
- Overall Width [ABMK]
- 1.120 Inches Nominal
- Special Features [FEAT]
- Distance Between Other Mounting Holes 5.000 In.
- Style Designator [STYL]
- Rectangular
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541,Class 1A Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Chromate Overall
