5340-01-281-9254
Rod End Connector
5340012819254 012819254 6289753
An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION. View more Rod End Connector
May 2023
2
Marketplace 5340-01-281-9254
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-281-9254 1+ Documents (More...)
United States (US) 4. 5340-01-281-9254 Marketplace Restrictions Approved Sources Datasheet Management
Day 5340-01-281-9254 RQST NE Updated Every Day 5340-01-281-9254 RQST Updated Every Day 5340-01-281-9254
Restrictions 5340-01-281-9254
5340-01-281-9254 is a Rod End Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-281-9254
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC10
Approved Sources 5340-01-281-9254
- Part Number
- Manufacturer
- Status
- 6289753
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-281-9254
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0

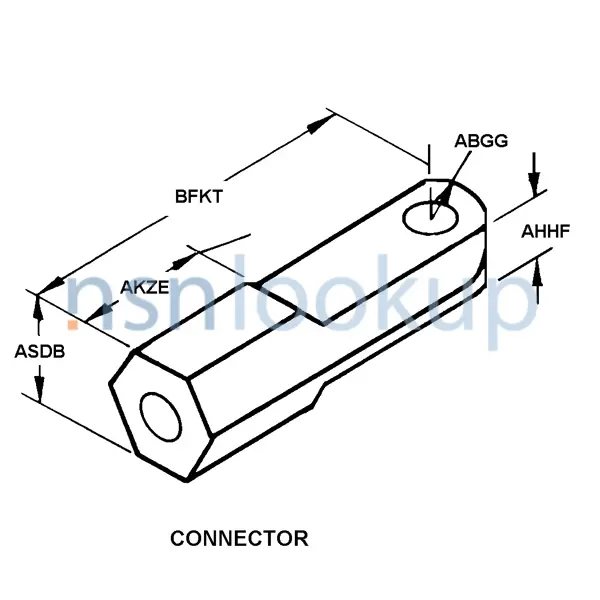

- Distance From End To Hole Center [BFKT]
- 0.980 Inches Minimum And 1.000 Inches Maximum
- Nominal Thread Size [CQJX]
- 0.375 Inches Rod Connection
- Material [MATT]
- Steel Comp 1117 Or Steel Comp 1118 Overall
- Material Document And Classification [MDCL]
- Astm A108 Assn Std All Material Responses Overall
- Radius [ABGG]
- 0.150 Inches Minimum And 0.170 Inches Maximum
- Rod Connection End Length [AKZE]
- 0.470 Inches Nominal
- Special Features [FEAT]
- Tongue 0.320 In. Min 0.340 Max Dia W/Two Flatted Surfaces
- Thread Series Designator [THSD]
- Unf Rod Connection
- Tongue Thickness [AHHF]
- 0.280 Inches Minimum And 0.290 Inches Maximum
- Width Across Flats [ASDB]
- 0.500 Inches Nominal
- Style Designator [STYL]
- Connector
- Surface Treatment Document And Classification [STDC]
- Mil-P-16232,Type M Or Z Class 1 Mil Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Phosphate Manganese Overall Or Phosphate Zinc Overall
- Thread Direction [AAJF]
- Right-Hand Rod Connection
- Thread Class [AAJD]
- 3B Rod Connection
- Thread Length [AASA]
- 0.205 Inches Minimum Rod Connection And 0.225 Inches Maximum Rod Connection
