5340-01-278-9559

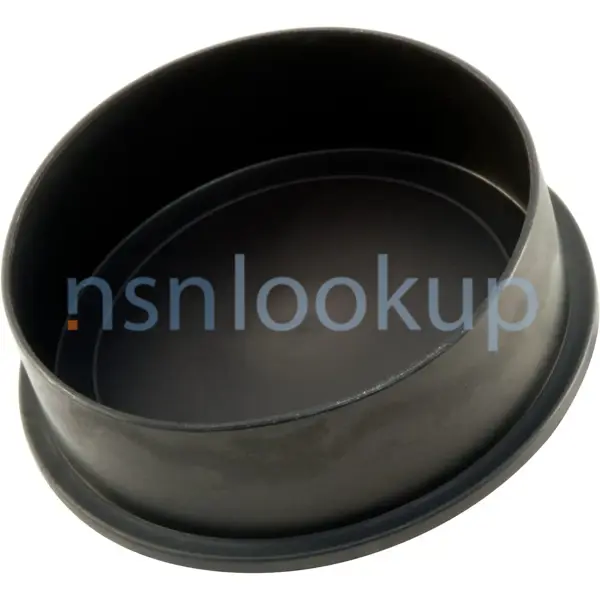

Dust And Moisture Seal Protective Cap
5340012789559 012789559 CEC-32 P4330556-19
An item specifically designed to fit over the opening(s) of various items to provide mechanical protection and/or to prevent the entrance of foreign matter during painting, shipping, storage, or the like. It is not designed to retain fluids under pressure during equipment operation. Excludes COVER, ELECTRICAL CONNECTOR; HOOD, SEALING, BOTTLE; and STOPPER, BOTTLE. For items designed to fit into or over the opening(s) of various items, see CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. View more Dust And Moisture Seal Protective Cap
September 2025
13
Marketplace 5340-01-278-9559
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-278-9559 2+ Documents (More...)
CEC-32 CAP,PROTECTIVE,DUST AND MOISTURE SEAL 80 EA NS Request Quotation Updated Every Day 5340-01-278
-9559 RQST NE Updated Every Day 5340-01-278-9559 RQST Updated Every Day 5340-01-278-9559 RQST NE Related
Restrictions 5340-01-278-9559
5340-01-278-9559 is a Dust And Moisture Seal Protective Cap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-278-9559
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-278-9559
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Jul 2007
- Singapore (YJ01)
- Effective Date:
- 1 Sep 2015
- Belgium (ZB01)
- Effective Date:
- 1 Sep 2014
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Nov 2013
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1996
Approved Sources 5340-01-278-9559
- Part Number
- Manufacturer
- Status
- CEC-32
- Manufacturer
- 99017 - Caplugs Llc (Active)
- Primary Buy
- Primary Buy
- P4330556-19
- 77445 - Rtx Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-278-9559
- Characteristic
- Specifications
- FIIG
- Specifications
- A539K0
- Material [MATT]
- Plastic Polyethylene
- Design Type [APGF]
- Friction
- Tube Outside Diameter For Which Designed [ACSV]
- 0.875 Inches Nominal
- Overall Diameter [ADAV]
- 2.230 Inches Nominal
- Inside Diameter Length [BZMQ]
- 0.550 Inches Nominal
- Round Cap Outside Surface Condition [BZMX]
- Smooth
- Special Features [FEAT]
- C0lor Black
Weapon Systems (WSDC) 5340-01-278-9559
DLA Procurement Analysis 5340-01-278-9559
- Last Stock Position:
- 4682 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-278-9559
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-278-9559
Freight Information 5340-01-278-9559
5340-01-278-9559 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-01-278-9559 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-278-9559 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-278-9559 is not classified as a special type of cargo when transported by water. 5340-01-278-9559 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-278-9559
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-278-9559 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E418V3560
- 06 Feb 2018
- Subscribe
- 1160
- Subscribe
- Subscribe
- Subscribe
- SPE5E418V1722
- 22 Nov 2017
- Subscribe
- 4792
- Subscribe
- Subscribe
- Subscribe
- SPE5E718P0584
- 30 Oct 2017
- Subscribe
- 3496
- Subscribe
- Subscribe
- Subscribe
- SPE5E417V1071
- 03 Nov 2016
- Subscribe
- 3393
- Subscribe
- Subscribe
- Subscribe
- SPE5E414V2864
- 19 Dec 2013
- Subscribe
- 3278
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-01-278-9559 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
