5340-01-273-2863
Butt Hinge
5340012732863 012732863 MS20257 MS20257C4-450
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
January 2023
5
Marketplace 5340-01-273-2863
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-273-2863 5+ Documents (More...)
MS20257-1-1750 MS20257-1 34064250 -001 MS20257-1-250 MS20257-1-1050 MS20257-1-925 MS20257-1-468 MS20257
-2-7200 MS20257-2 MS20257-2-1400 MS20257-2-1425 MS20257-2-1600 AN257-2-7200 A MS20257-2 HINGE,BUTT 99
1369AS157-3 MS20257C4-1800 MS20257C4-4800 355228-1 355737-1 790834-02 946481-8 355739-1 7900834-02 MS20257C4-450
MS20257-C4-800 HINGE,BUTT 4 EA NS Request Quotation Subscribe to View Vendor Details...
-1-1050 MS20257-1-925 MS20257-1-468 MS20257-1-270 MS20257P1-380 MS20257-1- -001 MS20257-1-250 MS20257
-2-7200 MS20257-2 MS20257-2-1400 MS20257-2-1425 MS20257-2-1600 AN257-2-7200 A MS20257-1-1050 MS20257-
MS20257-2 HINGE,BUTT 99 EA NS Request Quotation MS20257-2-7200 HINGE,BUTT 99 EA NS Request Quotation
MS20257-2-1050 HINGE,BUTT 1 EA NS Request Quotation MS20257-2-1600 HINGE,BUTT 2 EA NS Request Quotation
MS20257-3-1925 MS20257-3 MS20257P3-7200 MS20257P3 -250 AN257P3 AN257P3-7200 MS20257-3-1600 51212-315
-7 MS20257-3-1925 MS20257-3 MS20257P3-7200 MS20257P3 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
Restrictions 5340-01-273-2863
5340-01-273-2863 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-01-273-2863
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-01-273-2863
- Part Number
- Manufacturer
- Status
- MS20257C4-450
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MS20257
- 96906 - Military Standards (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5340-01-273-2863
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Hinge Mounting Type [AKER]
- Full Mortise
- Material Thickness [ABPX]
- 0.062 Inches Nominal
- Knuckle Type [AKNB]
- Friction
- Knuckle Quantity [AKEX]
- 8
- Material And Location [ANNQ]
- Steel, Qq-S-766, Class 301 Overall Or Steel, Qq-S-766, Class 302 Overall Or Steel, Qq-S-766, Class 304 Overall
- Pin Removability [AKES]
- Nonremovable
- Pin Tip Style [AKEV]

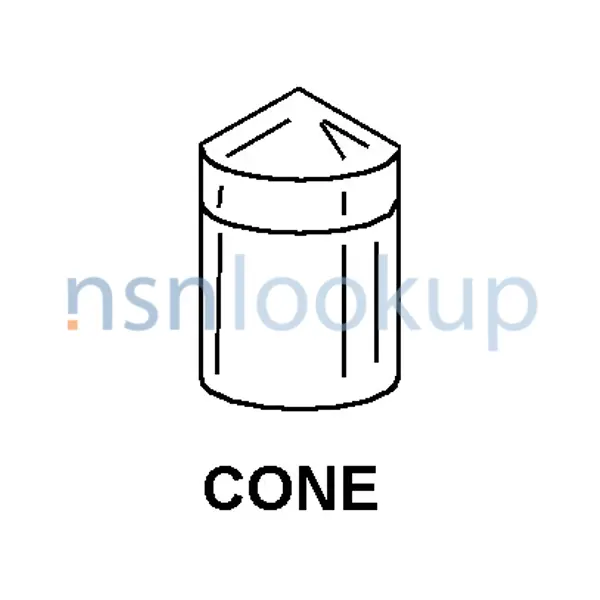

- Cone
- Reversible Feature [AJNC]
- Not Included
- Overall Length [ABHP]
- 4.500 Inches Nominal
- Performance Type [AGLD]
- Light Duty
- Pin Center To Body Edge Distance [AKFK]
- 0.093 Inches Nominal
- Pin Diameter [ABVV]
- 0.118 Inches Nominal
- Style Designator [STYL]
- Butt
