5340-01-269-1528

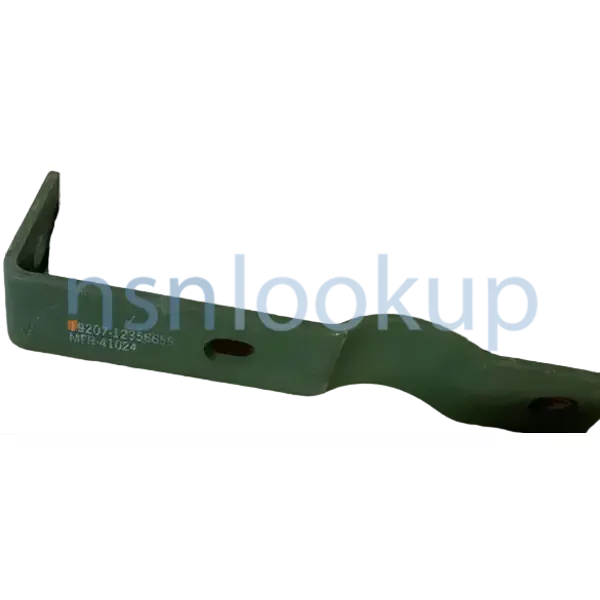

Angle Bracket
5340012691528 012691528 12356659
A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF. View more Angle Bracket
January 2026
4
Marketplace 5340-01-269-1528
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-269-1528 5+ Documents (More...)
5340-01-269-1528 (Identification) 4/6 NSN 5340-01-269-1528 (Identification) 5/6 NSN 5340-01-269-1528
Every Day 5340-01-269-1528 RQST NE Related Documents 5340-01-269-1528 5+ Documents ( More... ) https
Angle Bracket 5340012691528 012691528 5826218905464 218905464 is a Angle Bracket Similar Supply
B2Operational Test:No Special Procedures Similar Supply Items to 5340-01-325-5358 5340-01-190-0333 5340-01-269-1528
Restrictions 5340-01-269-1528
5340-01-269-1528 is a Angle Bracket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-269-1528
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-269-1528
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5340-01-269-1528
- Part Number
- Manufacturer
- Status
- 12356659
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-269-1528
- Characteristic
- Specifications
- FIIG
- Specifications
- A042A0
- First Leg Angle [CSSQ]
- 90.0 Degrees Nominal
- First Leg Distance From Edge To Hole Center Along Width [AHRA]
- 0.500 Inches Nominal
- First Leg Hole Arrangement Style [AKAU]
- One Hole
- First Leg Distance From Edge To Hole Center Along Length [AHRB]
- 0.670 Inches Nominal
- First Leg Style [AJZU]
- Square
- First Leg Thickness [AHPW]
- 0.1196 Inches Nominal
- First Leg Width [AHQN]
- 1.000 Inches Nominal
- First Leg Hole Diameter [AHLK]
- 0.338 Inches Minimum And 0.359 Inches Maximum
- First Leg Length [ADLK]
- 1.539 Inches Nominal
- Material [MATT]
- Steel Comp 1009 Or Steel Comp 1137 Or Steel Uns K01507 Or Steel Uns K02500
- Mounting Hole Type [ACHY]
- Plain
- Material Document And Classification [MDCL]
- Astm A569 Assn Std 1St Material Response Or Astm A366 Assn Std 1St Material Response Or Astm A109 Assn Std 2Nd Material Response Or Astm A109 Assn Std 3Rd Material Response Or Astm A109 Assn Std 4Th Material Response
- Second Leg Distance Between Hole Centers Along Length [AHLS]
- 3.240 Inches Nominal
- Second Leg End Radius [AJFQ]
- 1.120 Inches Nominal
- Second Leg Hole Arrangement Style [AKCU]
- 2 Slots
- Second Leg Distance From Edge To Hole Center Along Length [AHLW]
- 0.540 Inches Nominal
- Second Leg Distance From Edge To Hole Center Along Width [AHLV]
- 0.500 Inches Nominal
- Second Leg Thickness [AHPX]
- 0.1196 Inches Nominal
- Second Leg Width [AHLF]
- 1.000 Inches Nominal
- Second Leg Length [ADLL]
- 5.979 Inches Nominal
- Second Leg Relationship To First Leg [CSSP]
- Not Identical
- Second Leg Slot Length [AHLZ]
- 0.500 Inches Nominal
- Second Leg Slot Width [AHMA]
- 0.338 Inches Minimum And 0.359 Inches Maximum
- Second Leg Style [AKBU]
- End Radius
- Special Features [FEAT]
- Color Green
- Style Designator [STYL]
- Angle
- Surface Treatment [SFTT]
- Plastic Polyurethane
